Porsche PDK Gear Position Sensor

The Porsche PDK Gear Position Sensor is an internal transmission sensing component used to monitor the position of the shift rods or shift forks inside selected Porsche dual-clutch transmissions. In PDK repair literature, this component is also described as a distance sensor, displacement sensor or shift-fork position sensor. It provides position feedback to the transmission control unit so the system can confirm that the commanded gear has engaged correctly.

This product is intended for professional Porsche transmission workshops, PDK rebuilders, electronics specialists, distributors and wholesalers. PDK gear-position sensors are not universal across every Porsche PDK transmission. Panamera 970 applications use a different sensor and harness configuration from many 911, Boxster and Cayman 7DT45/7DT70 applications, so the original transmission type and part number should be confirmed before ordering.

Porsche PDK Gear Position Sensor Function

The Porsche PDK Gear Position Sensor monitors the movement and final position of the transmission shift rods. During a gear change, the hydraulic control system moves the selector mechanism. The sensor reports the resulting position back to the transmission control unit, allowing the TCU to verify whether the shift has been completed correctly.

This feedback is important because the PDK transmission must coordinate gear selection with the two clutches. If the control unit receives implausible or missing position information, it may limit shifting, store fault codes or place the transmission in a protective mode.

Typical diagnostic trouble codes associated with shift-rod position sensing on 7DT45 and 7DT70 units include P1731, P1732, P1733 and P1734. Depending on the fault, the vehicle may display a gearbox warning, remain in the selected gear, enter limp mode or become unable to shift normally. Porsche technical information also identifies P1731–P1734 as distance-sensor/shift-rod related faults.

These symptoms do not automatically prove sensor failure. Wiring damage, connector problems, hydraulic faults or internal shift-mechanism wear can create similar symptoms. Professional diagnosis is recommended before replacement.

Panamera 970 PDK Sensor Versions

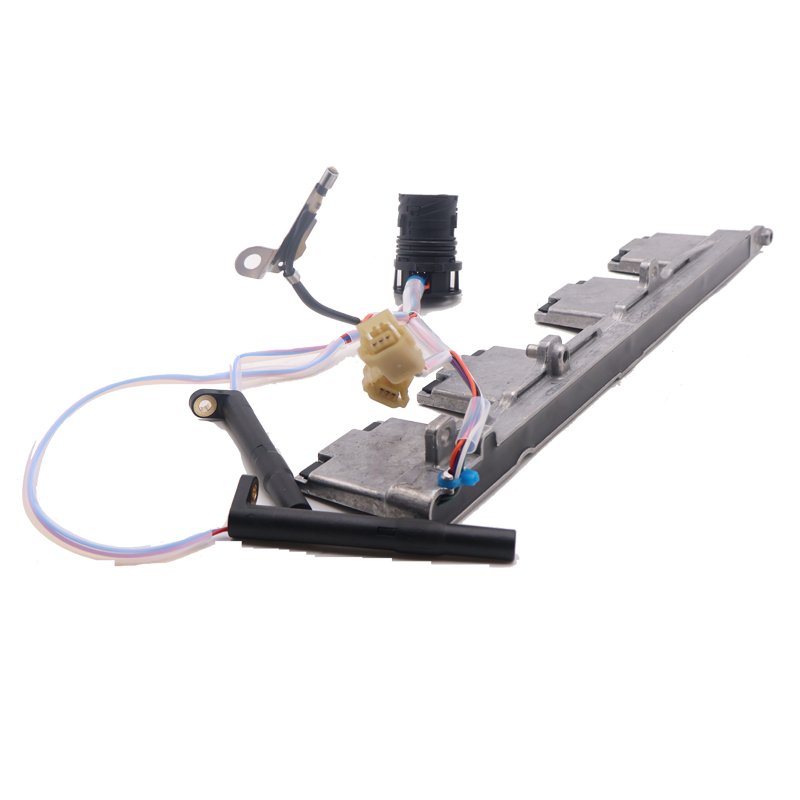

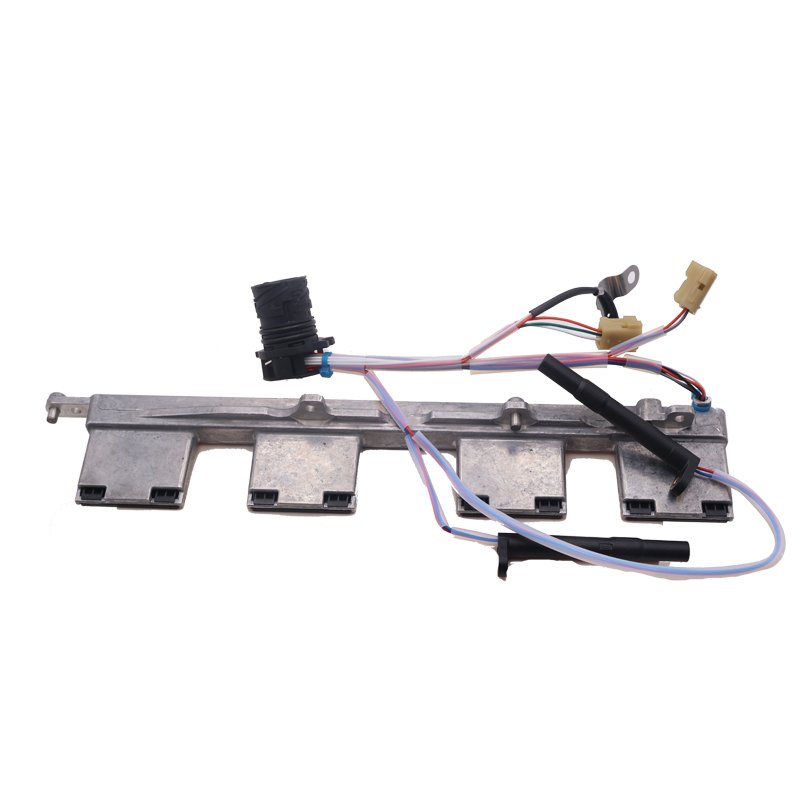

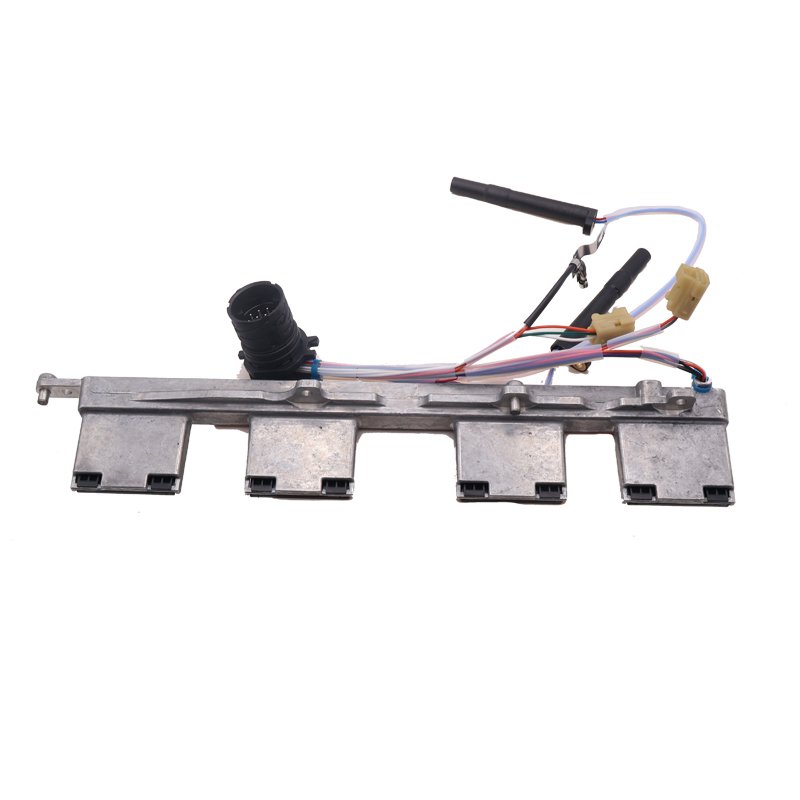

For Porsche Panamera 970 PDK applications, genuine Porsche parts listings show sensor-and-wiring assemblies such as 97031708500 and 97031708530. These assemblies combine the gear-fork position sensor with additional speed and temperature sensing functions.

The versions should not be treated as identical. Specialist Porsche parts sources list 97031708500 for selected rear-wheel-drive Panamera applications and 97031708530 for selected all-wheel-drive applications. Related or superseded numbers can also appear, including 97031708501, 97031708531 and 97031708532.

For a Panamera product, the safest matching method is to compare the original Porsche number and drivetrain configuration before shipment.

7DT45 and 7DT70 PDK Position Sensor

Porsche 911, Boxster and Cayman models using 7DT45 or 7DT70 PDK transmissions use another well-known shift-fork position sensor design. Specialist repair suppliers cross-reference 0501325775, 0501327105 and 0501324703 for this sensor family.

This sensor measures the position of four shift rods and communicates that information to the transmission control system. Because these references belong to a different PDK family from the Panamera 970 assemblies, they should not be mixed into one OE field unless the physical product is specifically designed for those transmissions.

Product Matching Before Ordering

Because “PDK gear position sensor” can describe more than one Porsche transmission component, customers should provide detailed information before ordering.

Useful matching information includes the original sensor number, transmission model, vehicle model, production year, rear-wheel-drive or all-wheel-drive configuration, connector photos and clear images of the complete sensor or harness.

If the transmission has previously been repaired, direct physical comparison is especially important.

Professional Installation and Calibration

Replacing a Porsche PDK position sensor is a specialist transmission repair procedure. Depending on the transmission, access may require removal of hydraulic components or partial gearbox disassembly. Correct wiring, sensor positioning and clean installation conditions are important.

After repair, diagnostic checks and PDK calibration or adaptation may be required according to the transmission version and workshop procedure. Professional Porsche diagnostic equipment should be used where applicable.

A replacement Porsche PDK Gear Position Sensor should not be advertised as universally plug-and-play unless its exact application and preparation status have been confirmed.

Related Porsche PDK Transmission Parts

We supply additional Porsche PDK transmission repair components, including oil pans, filters, valve-body parts, mechatronic components, solenoids, sensors, clutch-related parts and seals.

Customers can combine PDK sensor products with related service and repair parts in one order.

Porsche PDK Gear Position Sensor Wholesale Supply

We supply Porsche PDK Gear Position Sensor products to professional transmission workshops, rebuilders, distributors and wholesalers worldwide. Contact us with the original part number, transmission model, product photos and required quantity for version confirmation, current availability and wholesale quotation.
