VAG DSG CVT TCU Cloning Harness Kit

The VAG DSG CVT TCU Cloning Harness Kit is a professional bench connection cable set designed for transmission control unit diagnosis, data backup, programming and authorized cloning work. This harness package is intended for workshops that repair Volkswagen Group DSG and CVT transmission electronics and need direct connections to multiple TCU families without repeatedly building temporary wiring.

The supported transmission families include DQ200 0AM and 0CW, DQ250 02E and 0D9, DQ500 0BT and 0BH, VL381, DL501 0B5, and VL300 systems. Professional programming documentation groups these transmission controllers in the same DSG/CVT bench and boot-service environment, although available read, write, boot and cloning functions depend on the programmer and software module being used.

VAG DSG CVT TCU Cloning Harness Kit for Bench Repair

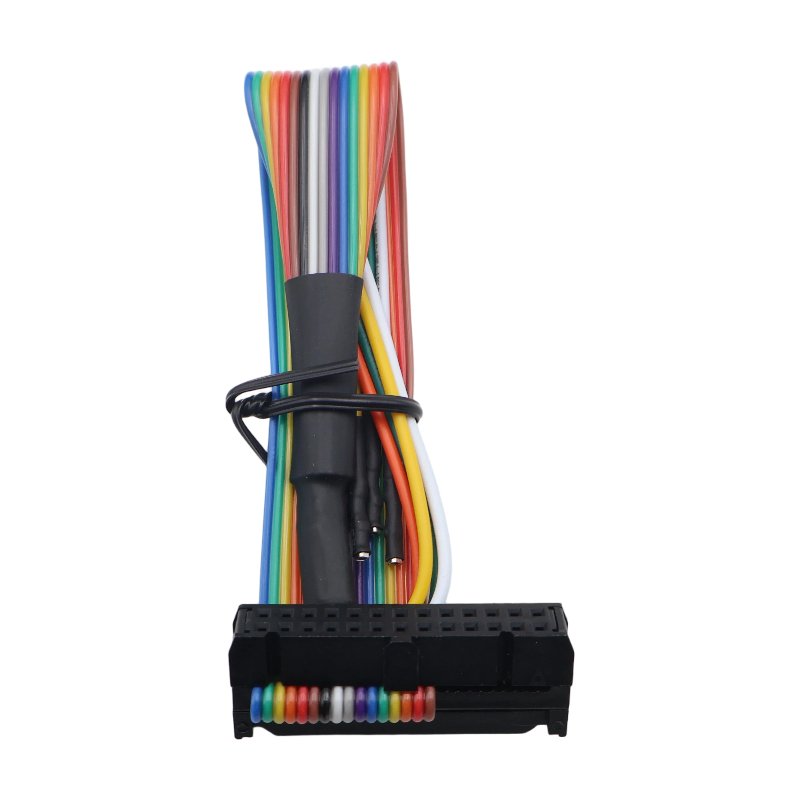

The VAG DSG CVT TCU Cloning Harness Kit provides dedicated connectors and wiring for compatible transmission control units. A bench harness creates a stable electrical link between the TCU and suitable programming hardware, supplying the required power, ground and communication connections according to the selected controller.

For a professional electronics workshop, a prepared cable set can reduce wiring time and help organize repeated TCU repair work. It is especially useful when technicians regularly handle several VAG transmission families.

Typical workshop applications may include TCU identification, authorized data backup, replacement-module data transfer, bench communication testing, repair verification, and supported read or write operations. The cable set itself does not create software functions. Actual capabilities depend on the connected programming interface, software license, protocol support and TCU hardware version.

Supported DSG and CVT Transmission Families

The harness set is designed around several widely used Volkswagen Group transmission controller families.

DQ200 is associated with 0AM and 0CW transmission controllers. DQ250 controllers are commonly identified by 02E and 0D9. DQ500 applications include 0BT and 0BH. Programming documentation also identifies VL381 with 0AW, DL501 with 0B5, and VL300/V30 with 01J or 0AN controller families.

These relationships make the kit useful for workshops working on a broad range of DSG and CVT electronic repairs. However, connector type and controller generation should still be checked before connection because hardware revisions may differ within one transmission family.

Customers should provide a clear TCU label photo and connector photo when they are uncertain about the correct harness.

Compatible Programming Equipment Required

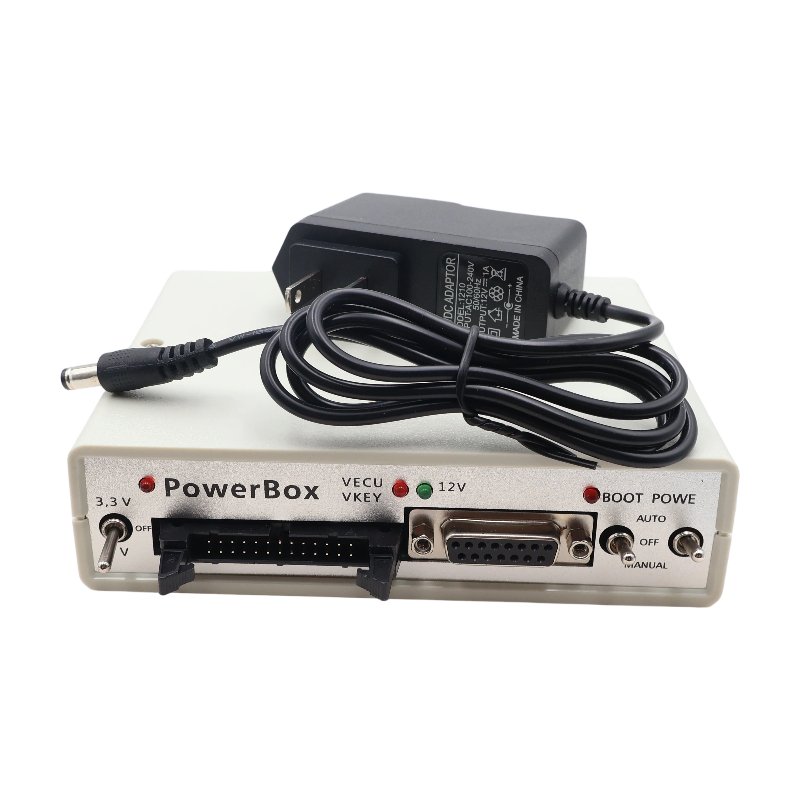

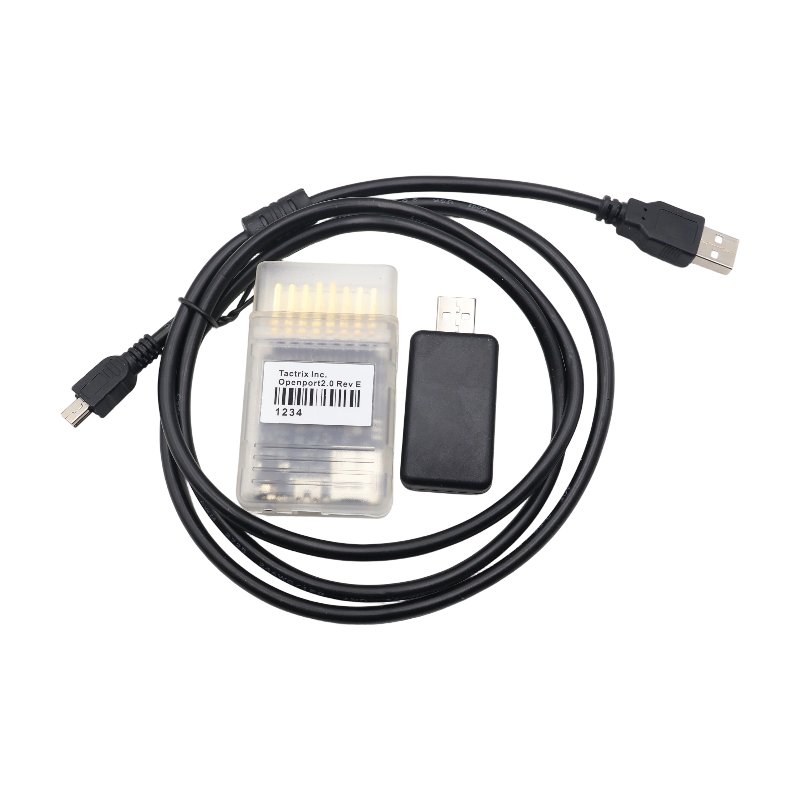

Professional bench programming requires more than the cable itself. The technician normally needs compatible programming hardware, an appropriate software module, a stable regulated power supply and correct connection procedures.

Depending on the TCU and software, supported operations may include reading processor memory, reading EEPROM, writing data, checksum correction or other repair functions. Some transmission controllers use direct bench connections, while particular repair procedures can require boot or BSL methods. PCMFlash Module 58 documentation, for example, distinguishes different read/write and boot capabilities between DQ200, DQ250, DQ500, VL300, VL381 and DL501 controllers.

The VAG DSG CVT TCU Cloning Harness Kit should therefore be described as a connection accessory rather than a universal standalone cloning machine. Buyers should confirm that their programmer supports the required transmission controller before ordering.

TCU Cloning and Replacement Matching

When replacing a transmission control unit, the original and donor modules should be correctly matched. Copying data cannot make every TCU hardware version interchangeable. Hardware number, software information, connector layout and transmission generation should be checked before data transfer.

For legitimate replacement or repair work, technicians may back up available data from an original module and transfer supported information to a compatible replacement module using suitable professional equipment.

After installation, coding, basic settings or transmission adaptation may still be required depending on the vehicle and control unit. Professional cloning services likewise distinguish supported gearbox families such as DQ200, DQ250, DQ500 and DL501 rather than treating all VAG TCUs as one universal type.

Multi-Transmission Bench Harness Configuration

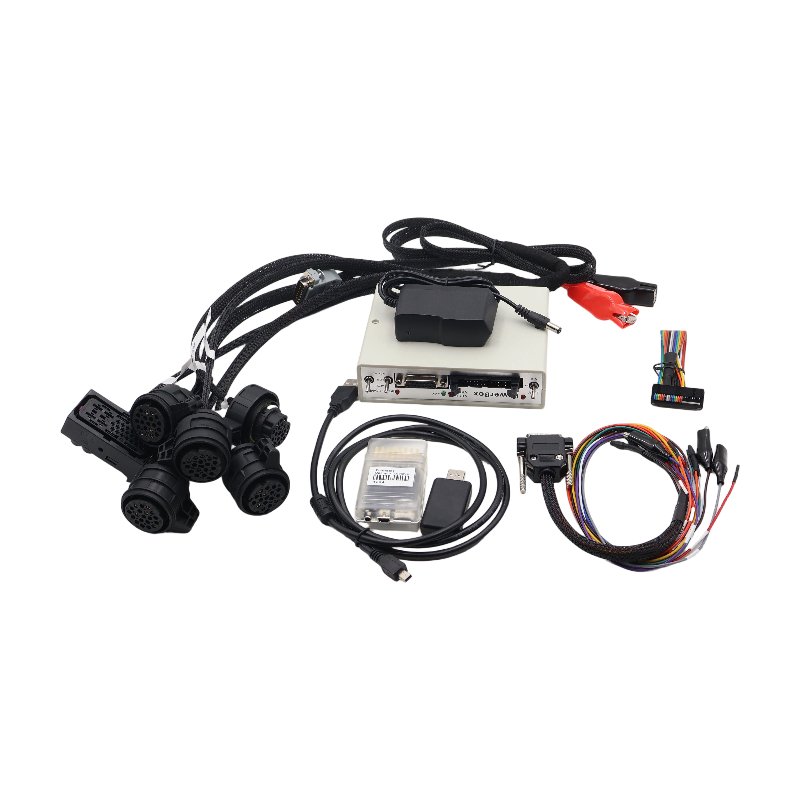

This product is supplied as a multi-transmission bench wiring set. Exact connector quantity and accessory configuration should be confirmed from the product photos and packing list.

Supported transmission families include DQ200 0AM / 0CW, DQ250 02E / 0D9, DQ500 0BT / 0BH, VL381, DL501 0B5, and VL300 / V30.

If your package contains separate cables for each controller, clear identification labels can help workshops quickly select the correct harness during daily repair work.

Related Transmission Electronic Repair Parts

We also supply transmission control units, complete mechatronic units, valve body components, wiring plates, solenoid parts, pressure accumulators and other DSG transmission repair components.

Customers repairing multiple VAG transmission controller families can combine compatible electronic and mechatronic repair products in one order.

VAG DSG CVT TCU Cloning Harness Kit Wholesale Supply

We supply VAG DSG CVT TCU Cloning Harness Kit products to professional transmission workshops, automotive electronics specialists, rebuilders, distributors and wholesalers worldwide.

Contact us with your programming tool model, transmission controller type, product photos and required quantity for compatibility confirmation and wholesale pricing.
