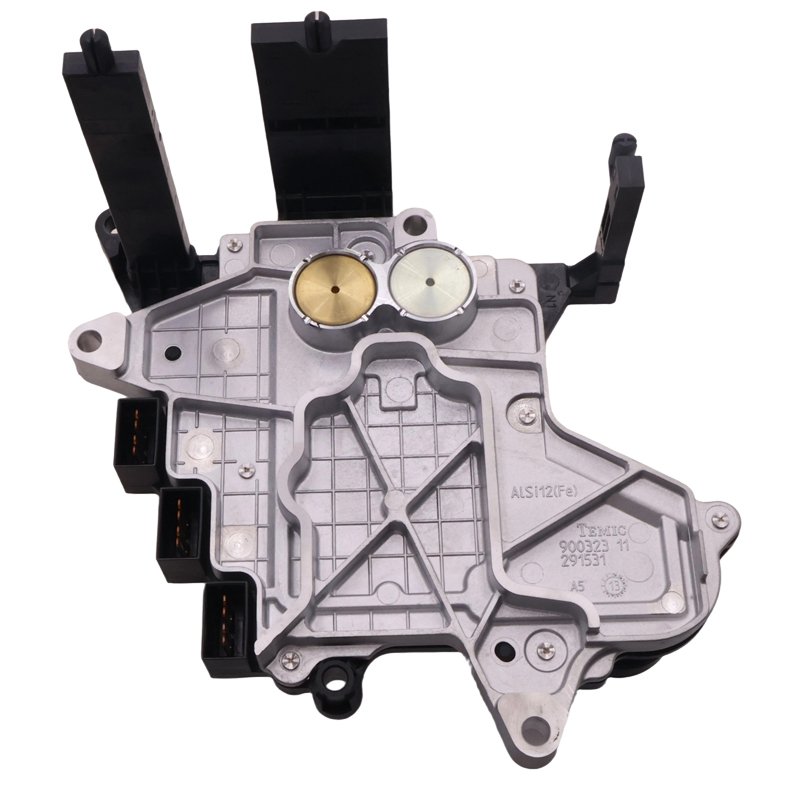

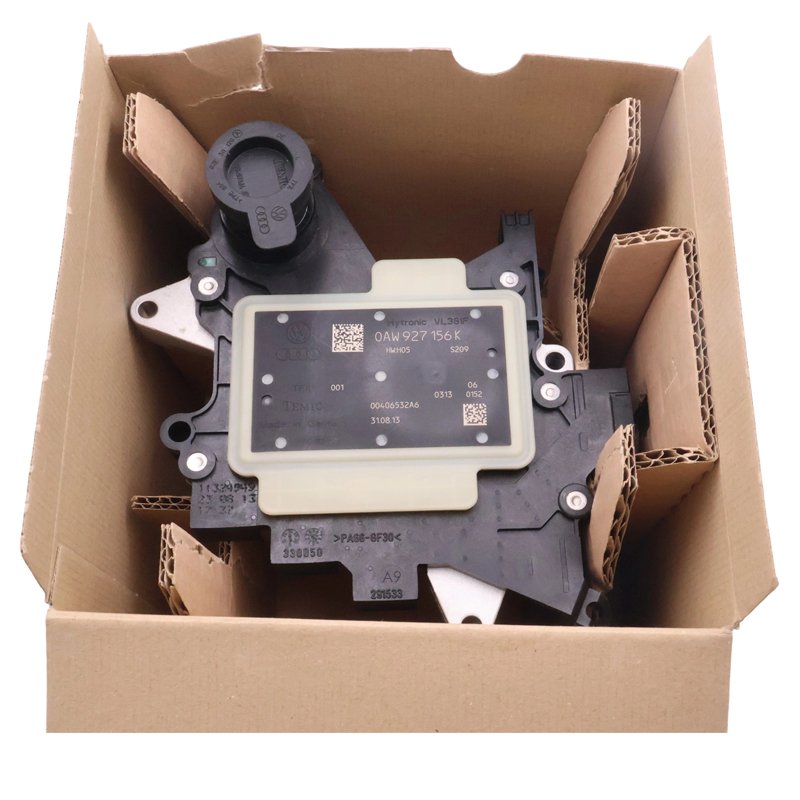

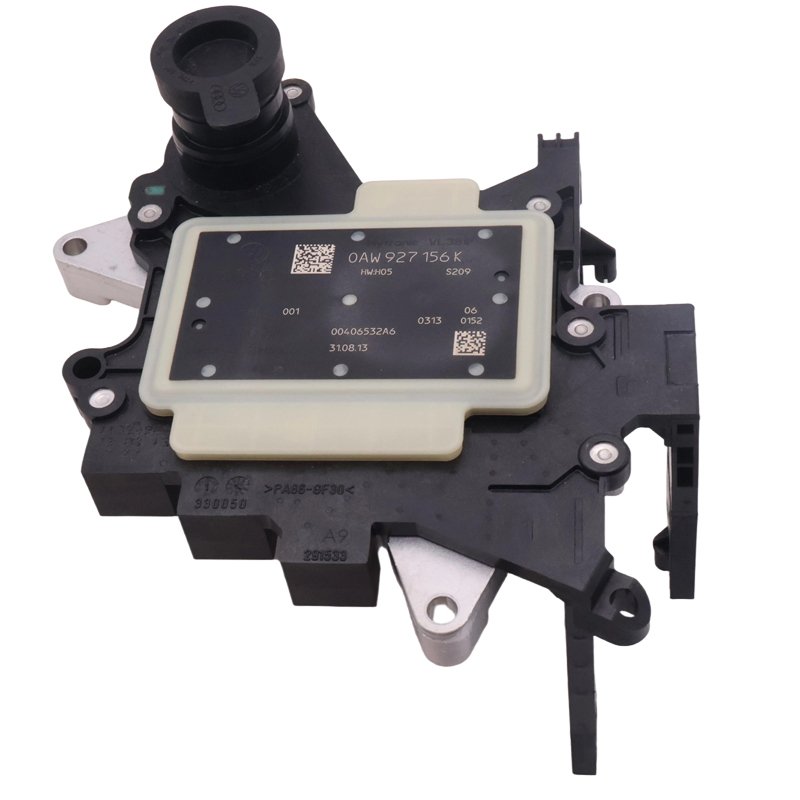

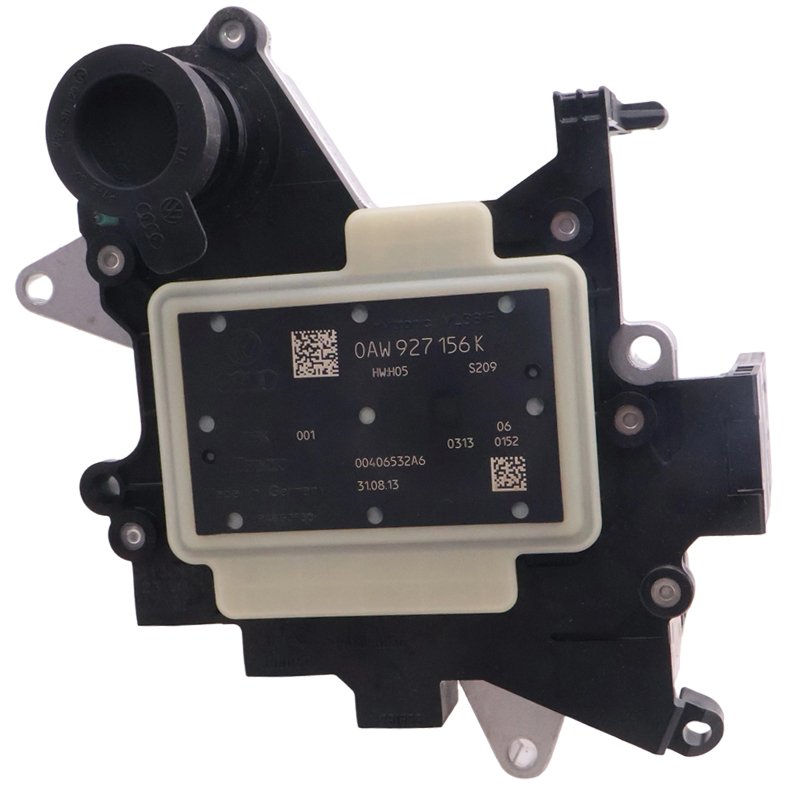

0AW927156K 0AW Multitronic CVT Transmission Control Module TCU

0AW927156K 0AW Multitronic Transmission Control Module TCU

0AW927156K is a transmission control module, commonly known as a TCU, TCM or transmission computer, designed for professional repair and replacement of compatible 0AW Multitronic CVT transmissions.

The 0AW transmission uses an electronically controlled continuously variable transmission system. The transmission control module processes operating information from the vehicle and transmission sensors and works together with the hydraulic control system to manage transmission ratio, hydraulic pressure and overall gearbox operation.

Professional transmission control unit references list 0AW927156K, together with versions such as 0AW927156H, 0AW927156G and 0AW927156E, within the 0AW Multitronic TCU family.

This product is suitable for Multitronic transmission specialists, automatic gearbox repair workshops, TCU electronic repair companies, transmission rebuilders, automotive spare parts wholesalers and international transmission parts distributors.

0AW927156K Product Information

Basic product information:

Part Number: 0AW927156K
Alternative Format: 0AW 927 156 K
Transmission: 0AW
Transmission Type: Multitronic CVT
Product Type: Transmission Control Module
Alternative Names: TCU / TCM / Transmission ECU / Gearbox Computer
Application: Transmission Electronic Control Repair
Condition: Original according to supplied product information

The complete suffix letter is important when identifying this module.

Although several 0AW927156 versions belong to the same transmission-control family, the suffix can be associated with different hardware or software configurations. For this reason, customers should not select a replacement control module only because the external housing looks identical.

Professional repair sources also advise comparing the original control-unit reference and transmission information rather than relying only on the general Multitronic name.

Function of the 0AW Multitronic TCU

The transmission control module acts as the electronic control center of the gearbox.

During vehicle operation, the TCU receives information from transmission and vehicle systems and uses this information to determine how the transmission should operate.

Its control functions can include:

• Transmission ratio management
• Hydraulic pressure regulation
• Sensor signal processing
• Transmission protection functions
• Communication with other vehicle modules
• Electronic fault monitoring

The 0AW Multitronic transmission uses continuously variable ratio control rather than conventional fixed automatic gear ratios. This makes accurate electronic and hydraulic control especially important.

Technical information for the 0AW927156 series describes the module as controlling transmission logic, hydraulic pressure and variator-ratio operation.

Multitronic CVT Electronic Control System

The 0AW927156K TCU works together with sensors, hydraulic components and the mechanical variator system.

If the transmission control module develops an electronic fault, possible symptoms may include abnormal transmission operation, warning messages, limp mode, communication errors or incorrect ratio control.

However, these symptoms should not automatically be diagnosed as a defective TCU.

Similar problems can also be caused by transmission sensors, internal wiring, hydraulic pressure problems, valve body components, mechanical CVT wear or software-related issues.

Professional diagnostic testing is therefore recommended before replacing the control unit.

0AW927156K Programming and Cloning

Replacing a Multitronic transmission control module may require additional electronic work after installation.

Professional suppliers specifically note that 0AW927156K replacement modules may require cloning or online programming. Other suppliers recommend checking coding, software and original module information before replacement.

Depending on the repair situation, technicians may need to perform:

• TCU cloning
• Original data transfer
• Programming
• Coding
• Basic settings
• Transmission adaptation
• Diagnostic testing

For this reason, the original transmission control module should preferably be retained until the replacement process has been completed successfully.

An experienced transmission electronics specialist should perform the replacement and programming work.

0AW927156K and Related TCU Versions

The 0AW927156 control-unit family includes several related suffixes.

Commonly listed references include:

0AW927156K
0AW927156H
0AW927156G
0AW927156E

These numbers are frequently listed together in professional replacement-TCU catalogs.

However, this does not mean every suffix should automatically be treated as plug-and-play interchangeable.

Software calibration, transmission configuration and vehicle-specific data can differ.

For this product page, the supplied number is specifically 0AW927156K.

If a customer’s original module carries another suffix, the complete original label should be checked before ordering.

Original Module Number Should Be Checked Before Ordering

Electronic transmission parts require more careful product identification than many mechanical components.

Before ordering 0AW927156K, professional buyers should confirm:

• Complete original TCU number
• Transmission code
• Hardware information
• Original module label
• Connector configuration
• Existing software information when available
• Required quantity

A clear photo of the original control-module label is especially useful.

Some diagnostic records show that 0AW927156K may appear as the hardware reference while a separate vehicle-specific software part number is stored in the control unit. This is another reason not to rely on the hardware number alone when programming a replacement module.

For Multitronic Transmission Repair Specialists

The 0AW927156K transmission control module is suitable for professional customers including Multitronic repair workshops, CVT specialists, TCU repair businesses, automatic transmission rebuilders, automotive spare parts wholesalers and transmission parts distributors.

KS supplies electronic, hydraulic and mechanical automatic transmission components for professional customers.

Related products can include transmission control modules, valve bodies, solenoids, sensors, oil seals, filters, overhaul kits and other CVT transmission repair components.

For professional buyers handling several transmission models, multiple TCU numbers can be combined into one inquiry for product checking and quotation.

Check Compatibility Before Ordering 0AW927156K

Before ordering 0AW927156K, please verify the complete identification information on the original transmission computer.

Do not choose the replacement module only according to the general 0AW transmission name or external appearance.

If you are unsure, please provide the original module number, clear label photos and available transmission information.

Correct module identification can reduce compatibility problems and make subsequent programming or cloning work more efficient.

Related Multitronic Transmission Parts

KS also supplies other Multitronic transmission electronic components.

Customers looking for another CVT transmission control module can check our 4F1910155E Multitronic Transmission Control Module.

For broader electronic transmission requirements, customers can also browse our Transmission Control Module product range.

These related pages help professional buyers compare different Multitronic and automatic transmission electronic control components.

Worldwide 0AW TCU Supply

KS supplies automatic transmission electronic components to professional customers worldwide.

Our product range includes TCUs, valve bodies, solenoids, sensors, filters, seals, clutch components, repair kits and other transmission parts.

If you are looking for 0AW927156K, an 0AW Multitronic TCU or other CVT transmission electronic components, send us your required part numbers and quantities.

We support transmission workshops, rebuilders, wholesalers and distributors with product identification, wholesale quotation and worldwide transmission parts supply.

Contact KS for 0AW927156K product information and wholesale quotation.
