0AM325066AP DQ200 Valve Body Hydraulic Unit

0AM325066AP DQ200 Valve Body Hydraulic Unit

The 0AM325066AP Valve Body is a hydraulic control component designed for the 0AM DQ200 7-speed DSG dry dual-clutch transmission.

The valve body is an important part of the DQ200 mechatronic hydraulic system. It controls the distribution of hydraulic oil pressure and works together with the hydraulic pump, accumulator, solenoid valves and electronic control module to operate clutch engagement and gear selection functions.

This product is suitable for professional DSG transmission repair workshops, automatic gearbox rebuilders, mechatronic specialists, wholesalers and transmission parts distributors.

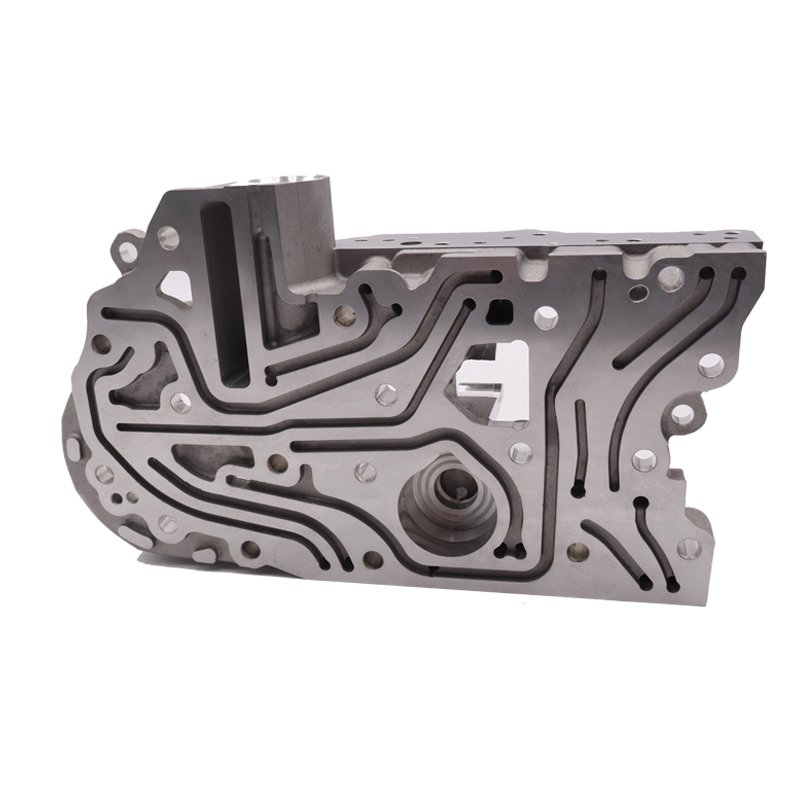

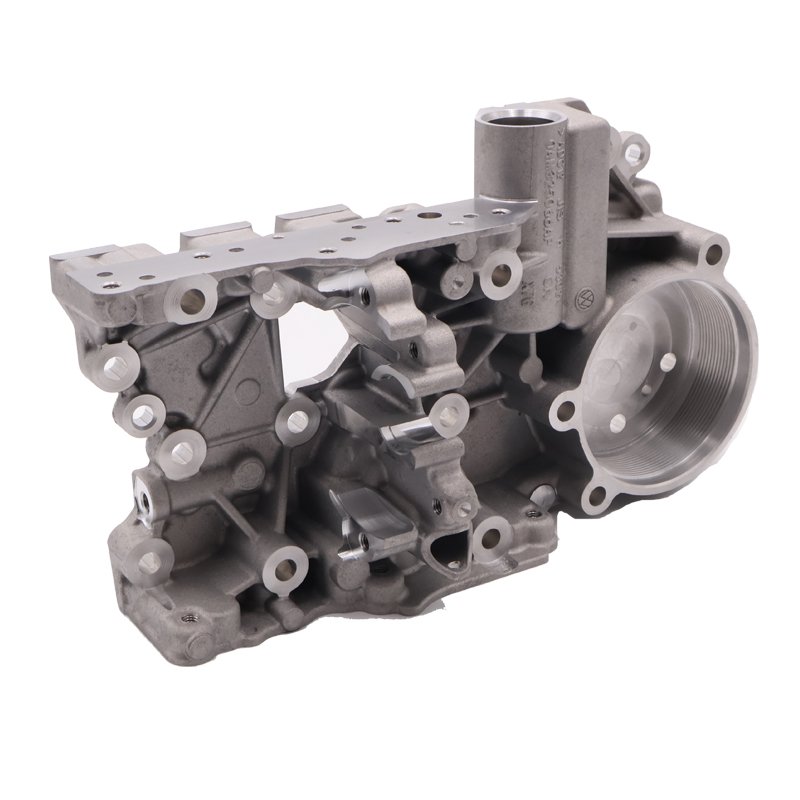

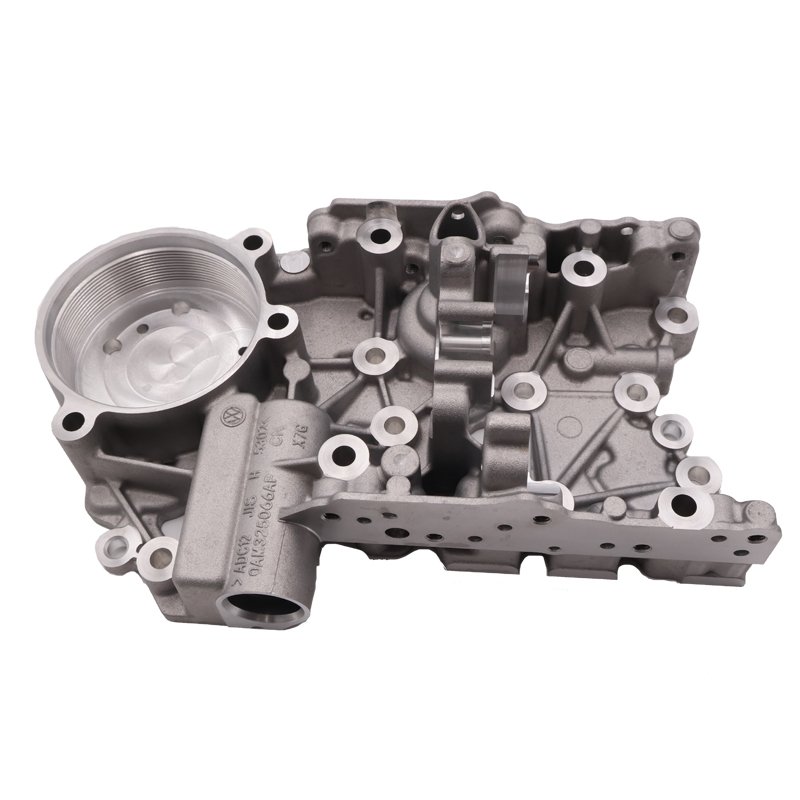

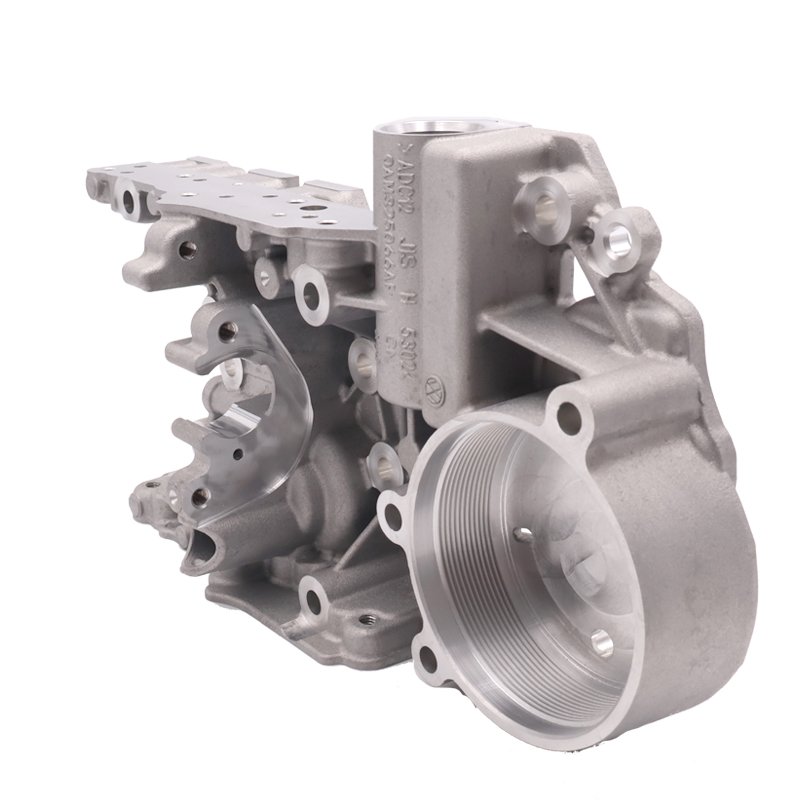

The product shown is the aluminum hydraulic valve body unit with the reference number 0AM325066AP.

Product Information

Product details:

Part Number: 0AM325066AP
Alternative Format: 0AM 325 066 AP
Transmission: 0AM / DQ200
Transmission Type: 7-Speed DSG Dry Dual-Clutch
Product Type: Hydraulic Valve Body Unit
Application: DSG Mechatronic Hydraulic Repair

The valve body should be identified together with the original transmission configuration because different DQ200 versions may use different hydraulic components and electronic control systems.

Before ordering, customers should confirm:

• Original valve body number
• Hydraulic unit appearance
• Transmission model
• Connector configuration
• Mechatronic version

Function of the DQ200 Valve Body

The valve body controls hydraulic oil flow inside the DQ200 mechatronic system.

During transmission operation, the hydraulic pump generates pressure and the accumulator stores hydraulic energy. The valve body then directs hydraulic oil to different circuits according to signals from the transmission control module.

The hydraulic system controls important functions including:

• Clutch actuator operation
• Gear selection movement
• Hydraulic pressure regulation
• Solenoid valve operation
• Transmission shifting control

Because the DQ200 uses a dry dual-clutch design, accurate hydraulic control is essential for smooth shifting and reliable transmission operation.

Valve Body and Mechatronic System

The DQ200 mechatronic unit combines electronic and hydraulic control systems.

The electronic section includes:

• Transmission control module
• Sensors
• Circuit board
• Communication system

The hydraulic section includes:

• Valve body
• Solenoid valves
• Hydraulic passages
• Oil pump
• Pressure accumulator

The valve body itself does not make electronic decisions. Instead, it receives hydraulic control commands through the mechatronic system and regulates oil pressure to the required components.

For this reason, accurate diagnosis is important before replacing a valve body.

Common DQ200 Valve Body Problems

A damaged or worn valve body may contribute to transmission issues such as:

• DSG warning messages
• Abnormal gear shifting
• Hydraulic pressure problems
• Clutch engagement problems
• Gear selection faults
• Mechatronic system leakage

Possible causes include:

• Internal wear
• Hydraulic contamination
• Damaged sealing surfaces
• Incorrect previous repairs
• Long-term operating stress

However, similar symptoms may also come from other DQ200 components, including the transmission control module, solenoid valves, hydraulic pump, accumulator or sensors.

Professional diagnosis should always be performed before replacement.

Hydraulic Repair Application

The 0AM325066AP Valve Body is commonly used during professional DQ200 mechatronic repair and rebuilding.

During inspection or replacement, technicians should check:

• Hydraulic channels
• Valve body surfaces
• Sealing areas
• Solenoid installation points
• Oil contamination
• Related hydraulic components

The hydraulic passages inside the valve body require precise manufacturing because even small damage or contamination can affect pressure control.

Valve Body Replacement Considerations

When replacing a DQ200 valve body, technicians should confirm that the replacement unit matches the original system.

Important checks include:

• Part number compatibility
• Hydraulic design
• Mechatronic version
• Related electronic components
• Software configuration

A valve body replacement may require additional inspection of related components because the hydraulic system works as a complete assembly.

The oil pump, accumulator and solenoid valves should also be checked during a complete repair process.

Difference Between Valve Body and Repair Kit

A valve body is the main hydraulic control housing component.

A repair kit normally contains service parts such as:

• Gaskets
• O-rings
• Seals
• Filters
• Small repair components

They are different products for different repair requirements.

The valve body is used when the hydraulic control housing itself requires replacement.

The repair kit is used when the original valve body can be reused after internal servicing.

Professional Installation Recommended

The 0AM325066AP Valve Body is a precision hydraulic component and should be installed by experienced transmission technicians.

During installation, technicians should:

• Clean all hydraulic surfaces
• Check sealing areas
• Inspect related components
• Use correct installation procedures
• Confirm hydraulic operation after repair

After installation, diagnostic equipment may be required for fault checking, basic settings and transmission adaptation.

Compatibility Check Before Ordering

Before purchasing the 0AM325066AP Valve Body, customers should confirm:

Transmission: 0AM DQ200
Part Number: 0AM325066AP
Product Type: Hydraulic Valve Body Unit
Application: DSG Mechatronic Repair

Customers can provide:

• Original part number
• Product photos
• Transmission information

for compatibility confirmation.

Related 0AM DQ200 Transmission Parts

KS supplies various 0AM DQ200 transmission repair components, including hydraulic parts, electronic components and service kits.

For complete mechatronic repair requirements, customers can also check our 0AM DQ200 Mechatronic Repair Kit.

For electronic control replacement, our 0AM927769K Transmission Control Module is also available.

For hydraulic pressure system repair, customers can check our 0AM325577F DQ200 Mechatronic Oil Pump.

For sealing maintenance, our 0AM DQ200 Mechatronic Gasket Kit provides related repair components.

KS supports transmission workshops, rebuilders, wholesalers and distributors with professional DSG transmission parts supply.

Contact us for 0AM325066AP Valve Body quotation and product information.
