0AM DQ200 Original Mechatronic Valve Body Repair Kit

0AM DQ200 Mechatronic Repair Kit for DSG Valve Body Rebuilding

0AM DQ200 Mechatronic Repair Kit is designed for professional overhaul and repair of the hydraulic mechatronic system used in the 0AM DQ200 7-speed DSG transmission.

Unlike a simple seal kit or single pressure-accumulator repair component, this type of kit is intended for a more complete mechatronic rebuild. Genuine Volkswagen Group repair-kit listings for the DQ200 include major hydraulic components together with seals, filters, bolts and related service parts.

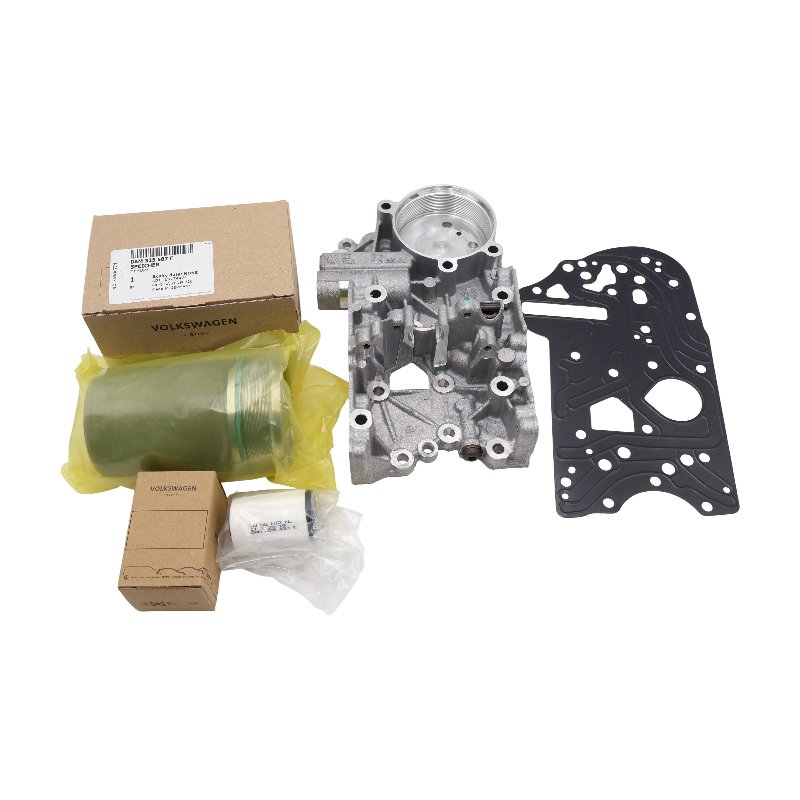

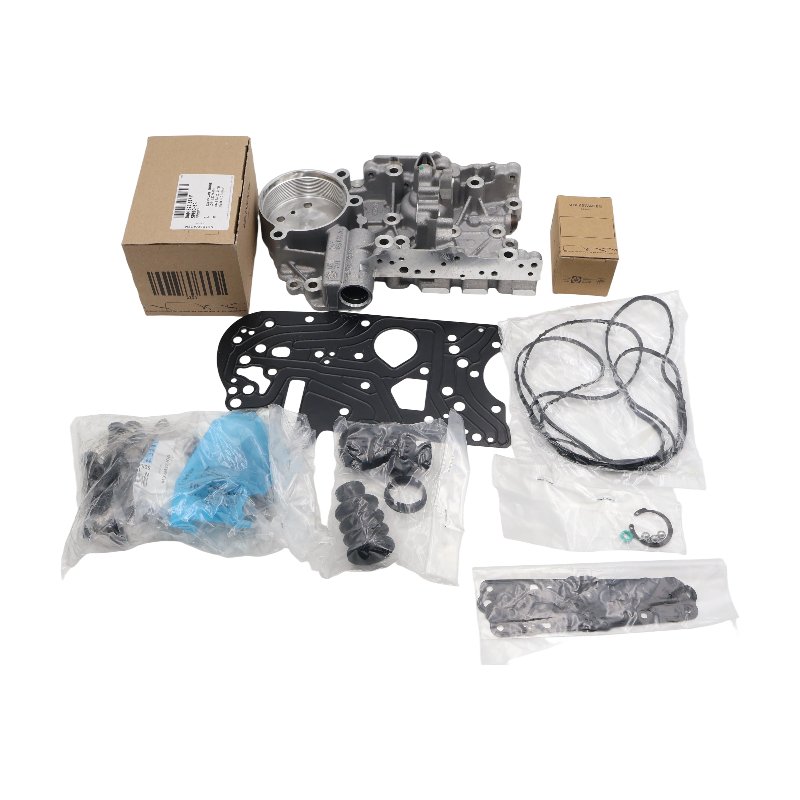

The product shown in your photo contains a hydraulic housing, pressure accumulator, large sealing plate or gasket, multiple O-rings and seals, bolts and several smaller repair components. This makes Mechatronic Valve Body Repair Kit a more accurate product name than simply calling it a gasket kit.

The kit is suitable for DSG transmission repair workshops, mechatronic specialists, automatic transmission rebuilders, automotive spare-parts wholesalers and professional transmission-parts distributors.

0AM DQ200 Mechatronic Repair Kit Product Information

Basic product information:

Transmission: 0AM / DQ200
Transmission Type: 7-Speed DSG Dry Dual-Clutch Transmission
Product Type: Mechatronic Valve Body Repair Kit
Alternative Names: Mechatronic Overhaul Kit / Hydraulic Repair Kit / Valve Body Repair Kit
Installation Area: Mechatronic Hydraulic Control Unit
Application: Hydraulic System Repair and Rebuilding
Condition: Original according to supplied product information

Genuine 0AM repair-kit documentation lists components such as the accumulator body, hydraulic pressure accumulator, filter element, housing seals, O-rings, bolts and piston-related repair parts.

Because kit configurations can vary, the actual supplied product photo and packing list should always be used as the final reference.

Complete DQ200 Mechatronic Hydraulic Repair

The DQ200 mechatronic unit contains both electronic and hydraulic control systems.

The hydraulic side generates and distributes oil pressure required to operate the gearbox actuators.

Important hydraulic components include:

• Hydraulic housing
• Oil pump
• Pump motor
• Pressure accumulator
• Valve body
• Solenoid valves
• Hydraulic seals
• Internal channels
• Filter components

When the mechatronic unit is opened for overhaul, technicians often inspect several of these components at the same time.

A more complete repair kit allows worn seals and related hydraulic parts to be replaced during the same repair instead of replacing only one component.

Pressure Accumulator and Hydraulic Housing

One of the most important areas of the DQ200 hydraulic system is the pressure-accumulator section.

The mechatronic pump generates hydraulic pressure, while the accumulator stores pressure for transmission operation.

Professional Volkswagen repair-kit documentation specifically describes repairs involving cracks around the accumulator mounting area of the hydraulic housing. Faults such as P17BF and P189C can be associated with insufficient pressure build-up or hydraulic pressure loss in this area.

For this reason, genuine repair kits can include both:

Accumulator body / hydraulic housing

and

Pressure accumulator

together with the necessary sealing components.

This provides a more complete repair solution than replacing only the accumulator.

Typical Components in a DQ200 Repair Kit

Depending on the exact kit version, professional DQ200 mechatronic overhaul kits may contain components such as:

Hydraulic / Accumulator Housing
Used as the main pressure-control housing section.

Pressure Accumulator
Stores hydraulic pressure generated by the mechatronic pump.

Mechatronic Filter
Helps reduce contamination circulating through the hydraulic system.

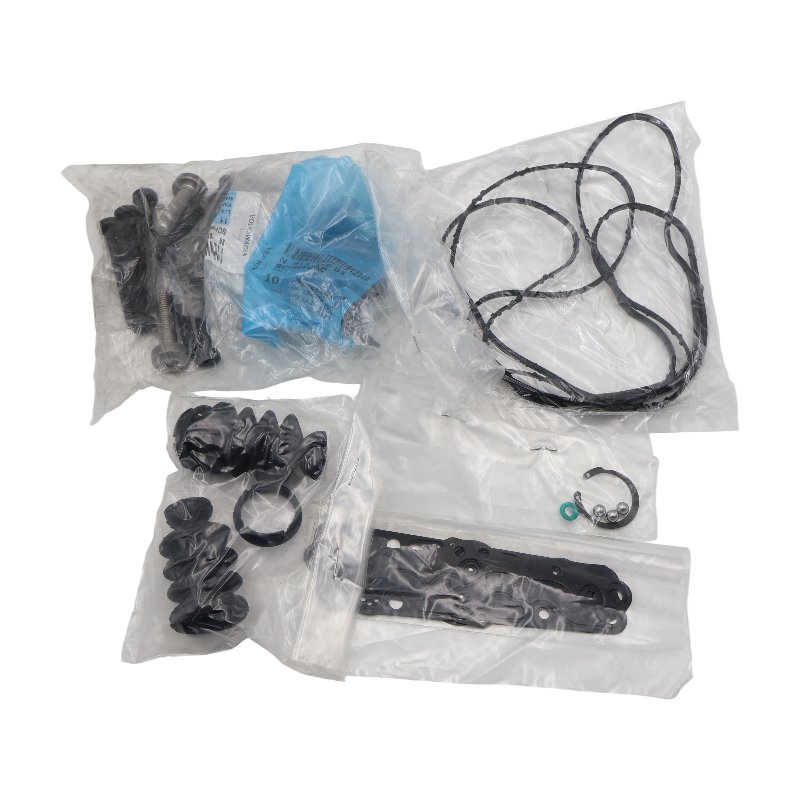

Housing Seals and O-Rings
Used to maintain hydraulic pressure and prevent internal or external fluid leakage.

Cover Gasket
Seals the mechatronic housing during reassembly.

Bolts and Fasteners
Replacement hardware used during complete rebuilding.

Clutch Actuator Seals and Sleeves
Some genuine repair kits include additional piston and actuator service components.

The genuine kit reference published by specialist OEM suppliers includes 0AM325066AJ accumulator housing, 0AM325587F hydraulic accumulator, 0AM325433E filter and several seals, O-rings and fasteners.

However, I recommend not putting all of these numbers into your WooCommerce specification as guaranteed contents unless your supplier confirms that your exact package contains them.

Why Hydraulic Seals Matter

The DQ200 mechatronic system depends on controlled hydraulic pressure.

If internal seals become damaged, hardened or deformed, hydraulic pressure may escape between circuits.

Possible results can include:

• Slow pressure build-up
• Frequent pump operation
• Gear engagement problems
• Hydraulic pressure fault codes
• Mechatronic warning messages
• Abnormal transmission operation

Replacing worn sealing components during a complete mechatronic overhaul can help restore the integrity of the hydraulic system.

However, pressure problems should not automatically be blamed on seals alone.

The technician should also inspect the pump, pump motor, accumulator, hydraulic housing, valve body and solenoid system.

P17BF and P189C DQ200 Hydraulic Faults

Professional DQ200 repair-kit suppliers frequently associate this type of repair with hydraulic fault codes including P17BF and P189C.

These fault codes may be associated with hydraulic pressure loss or insufficient pressure build-up.

Possible causes can include:

• Cracked hydraulic housing
• Accumulator mounting damage
• Internal hydraulic leakage
• Worn seals
• Accumulator problems
• Pump problems

The repair kit should therefore be treated as part of a professional diagnostic and rebuild process.

A fault code alone does not prove that every component in the kit must be replaced.

Difference Between Repair Kit and Complete Mechatronic Unit

The 0AM DQ200 Mechatronic Repair Kit is not a complete ready-to-install mechatronic unit.

A complete mechatronic assembly normally includes:

• Hydraulic valve body
• Electronic TCU
• Solenoids
• Sensors
• Pump system
• Accumulator system
• Housing and internal components

A repair kit contains replacement components used to rebuild or service the existing mechatronic assembly.

This makes it particularly suitable for specialist workshops capable of disassembling, inspecting and rebuilding DQ200 mechatronic units.

Customers looking for a ready-to-install assembly should instead choose a complete DQ200 mechatronic unit.

Professional Installation Recommended

This product is intended for professional transmission repair.

During installation, technicians should carefully inspect:

• Hydraulic housing
• Accumulator mounting area
• Oil pump
• Pump motor
• Hydraulic accumulator
• Valve body
• Solenoids
• Internal seals
• Mechatronic filter
• Transmission hydraulic fluid

The hydraulic system should remain clean throughout the repair.

Even small contamination can affect precision valves and hydraulic passages.

Correct bolt tightening, seal positioning and accumulator installation are also important.

Genuine repair-kit sellers specifically state that this type of repair should be performed by qualified personnel.

After reassembly, technicians should test hydraulic pressure and overall mechatronic operation.

Depending on the repair procedure, DSG basic settings or adaptation may also be required.

Check Kit Contents Before Ordering

Before purchasing the 0AM DQ200 Mechatronic Repair Kit, please check the actual kit configuration carefully.

We recommend confirming:

Transmission: 0AM / DQ200
Repair Area: Mechatronic hydraulic system
Hydraulic Housing: Confirm included version
Pressure Accumulator: Confirm included
Seals and Gaskets: Compare with product photo
Filter: Confirm actual package contents
Bolts and Small Parts: Check supplied quantity
Required Quantity: Confirm before quotation

Different DQ200 repair kits can contain significantly different components.

Some inexpensive kits contain only a modified accumulator and repair sleeve, while more complete OEM-style kits contain the hydraulic housing, accumulator, filter, seals and additional rebuilding components.

Your product photo is clearly closer to the complete overhaul/repair-kit type.

Related 0AM DQ200 Transmission Parts

For hydraulic pressure-system repair, customers can also check our 0AM325577F DQ200 Mechatronic Oil Pump.

For customers requiring a complete replacement assembly, our 0AM DQ200 Mechatronic Unit is also available.

For transmission electronic repairs, customers can check our 0AM DQ200 TCU Circuit Board and 0AM DQ200 TCU Sensor Kit.

These products cover different levels of DQ200 repair, from hydraulic rebuilding to individual electronic-component replacement.
