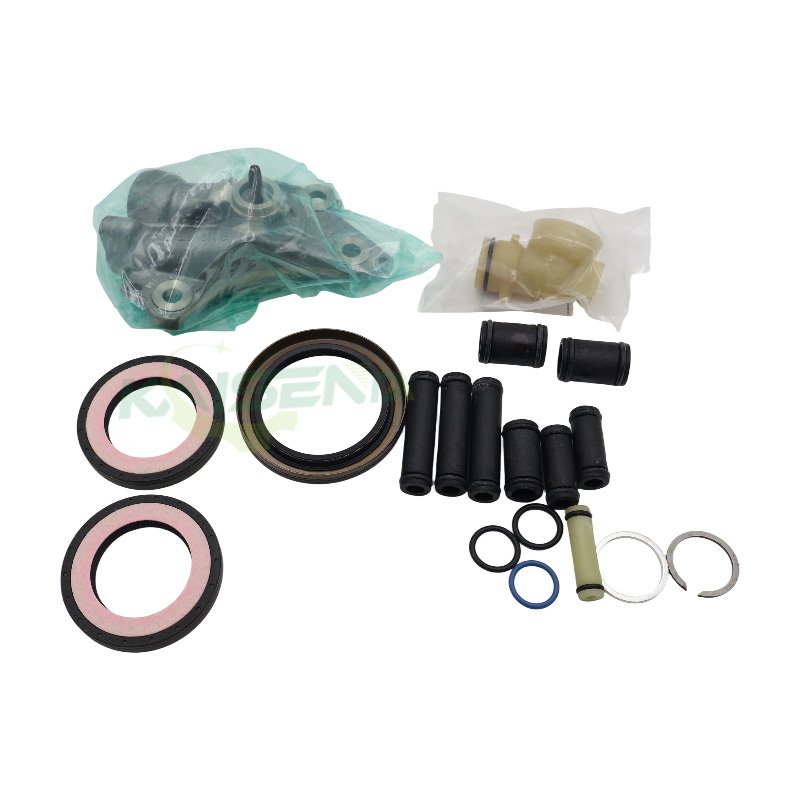

0GC DQ381 Original DSG Transmission Oil Pump Kit

0GC DQ381 Oil Pump Kit for 7-Speed DSG Transmission

0GC DQ381 Oil Pump Kit is an original transmission oil pump solution designed for professional repair and servicing of the 0GC DQ381 7-speed wet-clutch DSG transmission. The oil pump system is an important part of the transmission hydraulic and lubrication circuit, providing the oil flow and pressure required for transmission operation.

The 0GC transmission, commonly known as DQ381, uses an advanced oil management system designed to improve efficiency while maintaining the hydraulic pressure required by the dual-clutch transmission. Volkswagen technical documentation describes the 0GC as using both a mechanically driven oil pump and an electrically driven auxiliary hydraulic pump.

This product is suitable for DSG transmission repair workshops, automatic transmission rebuilders, professional gearbox technicians, automotive parts wholesalers and distributors requiring DQ381 oil pump components for repair or replacement.

0GC DQ381 Oil Pump System

The 0GC DQ381 Oil Pump Kit is associated with the transmission oil supply system inside the DQ381 gearbox.

Unlike a simple lubrication-only pump, the oil management system in a modern wet-clutch DSG transmission supports several important transmission functions. Oil circulation is required for hydraulic pressure generation, lubrication, clutch cooling and thermal management.

The DQ381 uses two oil pumps as part of its oil-management concept. A mechanically driven main pump provides the primary oil supply, while an electrically operated auxiliary pump can support hydraulic pressure according to transmission operating requirements. This dual-pump arrangement was one of the efficiency improvements introduced with the 0GC transmission.

Reliable oil pressure is therefore important for correct DSG operation.

Function of the DQ381 Mechanical Oil Pump

The mechanical transmission oil pump supplies oil to the gearbox hydraulic and lubrication systems while the transmission is operating.

Transmission oil performs several functions inside the DQ381, including:

• Hydraulic pressure supply
• Wet clutch cooling
• Gear and bearing lubrication
• Mechatronic hydraulic operation
• Heat management
• Internal component protection

If the mechanical oil pump becomes damaged or cannot maintain the required oil supply, transmission operation may be affected.

However, hydraulic pressure problems should not automatically be diagnosed as an oil pump failure. Similar symptoms can also result from mechatronic valve problems, internal leakage, solenoid faults, incorrect transmission fluid level or other hydraulic components.

Professional diagnosis should therefore be performed before replacing the oil pump.

Original Oil Pump Kit for DQ381 Repair

For professional transmission repair, using the correct oil pump version is important because the oil pump must correspond with the transmission housing, oil circuit and related components.

Public genuine-parts listings identify 0GC398008D as an original 0GC DQ381 oil pump repair kit and identify 0GC325577E as the mechanical oil pump contained in that kit.

These numbers are useful reference information when identifying a DQ381 oil pump kit.

However, because different production versions or replacement references may exist, customers should always check the actual number on the original part or original packaging before ordering.

If your product label confirms 0GC398008D or 0GC325577E, the number can also be used for more precise product identification.

When May a DQ381 Oil Pump Require Replacement?

Transmission technicians may inspect the oil pump when diagnosing abnormal hydraulic pressure, insufficient oil circulation or internal transmission oil supply problems.

During gearbox disassembly, the pump can also be checked for physical wear, damage, contamination and abnormal operating condition.

Possible transmission symptoms may include hydraulic pressure-related faults, abnormal shifting or clutch control problems. However, these symptoms are not exclusive to the oil pump.

The DQ381 hydraulic system contains multiple interacting components, including the mechatronic valve system, solenoids, seals, oil filters and oil passages.

For this reason, technicians should determine the actual cause of the transmission problem before installing replacement components.

A professional diagnosis helps reduce unnecessary component replacement and improves repair efficiency.

For DSG Transmission Workshops and Rebuilders

The 0GC DQ381 Oil Pump Kit is mainly intended for professional customers such as:

• DSG transmission specialists
• Automatic gearbox repair workshops
• Transmission rebuilders
• Automotive parts wholesalers
• Transmission parts distributors
• International automotive spare parts traders

For workshops rebuilding a DQ381 transmission, the oil pump may be purchased together with other transmission service components.

Related repair parts may include oil pans, filters, seals, valve body components, solenoids, clutch components and transmission repair kits.

Keeping related DQ381 service components available can help professional repair businesses complete transmission repairs more efficiently.

Check Compatibility Before Ordering

Before ordering the 0GC DQ381 Oil Pump Kit, please confirm the original transmission and pump information.

We recommend checking:

• Transmission model: 0GC / DQ381
• Original oil pump design
• Original pump part number
• Connection and mounting positions
• Product appearance
• Original packaging label if available
• Required quantity

Do not select a transmission oil pump only according to appearance.

Similar DSG transmission components may look very close externally while having different internal specifications or replacement numbers.

If you are unsure which version you require, send us a clear photo of the original oil pump and its identification number for checking.

DQ381 Transmission Oil Pump and Related Parts

Customers repairing DQ381 transmissions may also need other hydraulic and lubrication components.

KS supplies transmission oil pans, valve body parts, solenoids, seals, filters, repair kits, clutch components and other DSG transmission parts.

For customers working with the 0GC transmission family, our 0GC transmission oil pan is another related product for transmission servicing and oil-system repair.

Transmission workshops and distributors can send multiple product numbers or transmission models in one inquiry, allowing related repair parts to be checked together.

Worldwide 0GC DQ381 Transmission Parts Supply

KS supplies automatic transmission parts to professional customers in international markets.

If you are sourcing an 0GC DQ381 oil pump kit, DQ381 transmission oil pump, DSG hydraulic components or other 0GC transmission repair parts, contact us with your product number and required quantity.

We support transmission workshops, rebuilders, wholesalers and distributors with product identification, wholesale quotations and worldwide supply.

Contact KS for 0GC DQ381 oil pump kit information, availability and wholesale quotation.
