0AM DQ200 Oil Seal Kit for 7-Speed DSG Transmission

0AM DQ200 Oil Seal Kit for DSG Transmission Repair

0AM DQ200 Oil Seal Kit is designed for professional repair and rebuilding of the 0AM DQ200 7-speed DSG transmission. The kit contains multiple oil seals in different sizes for transmission sealing applications and is suitable for workshops replacing worn or damaged seals during gearbox disassembly and overhaul.

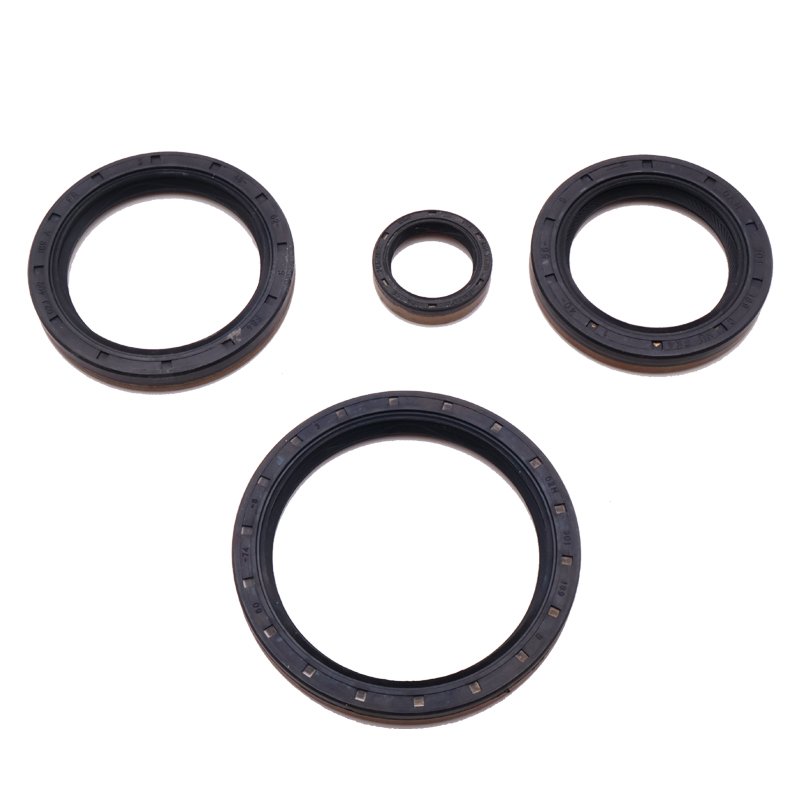

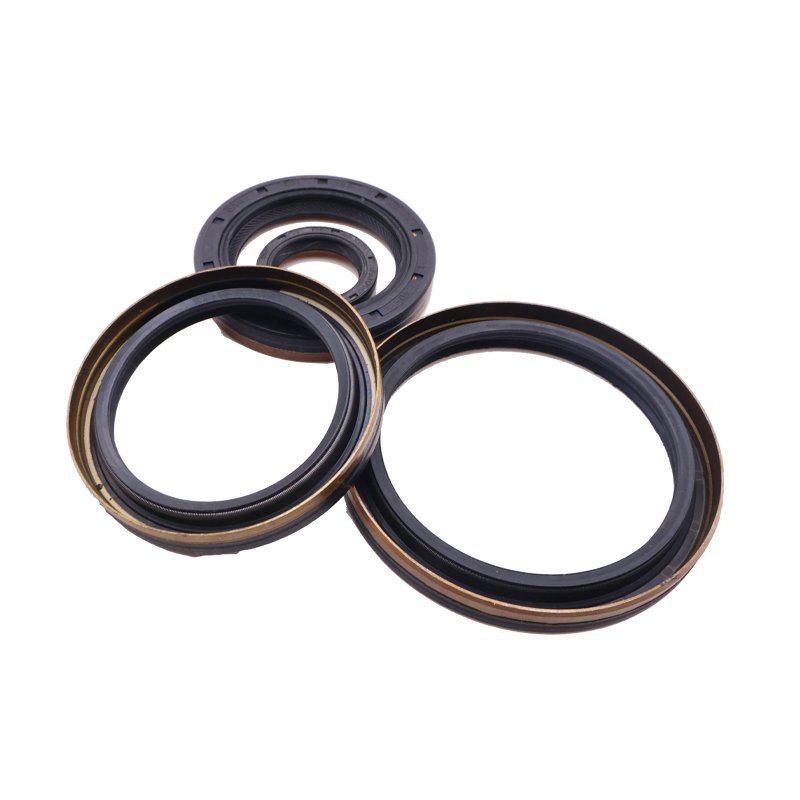

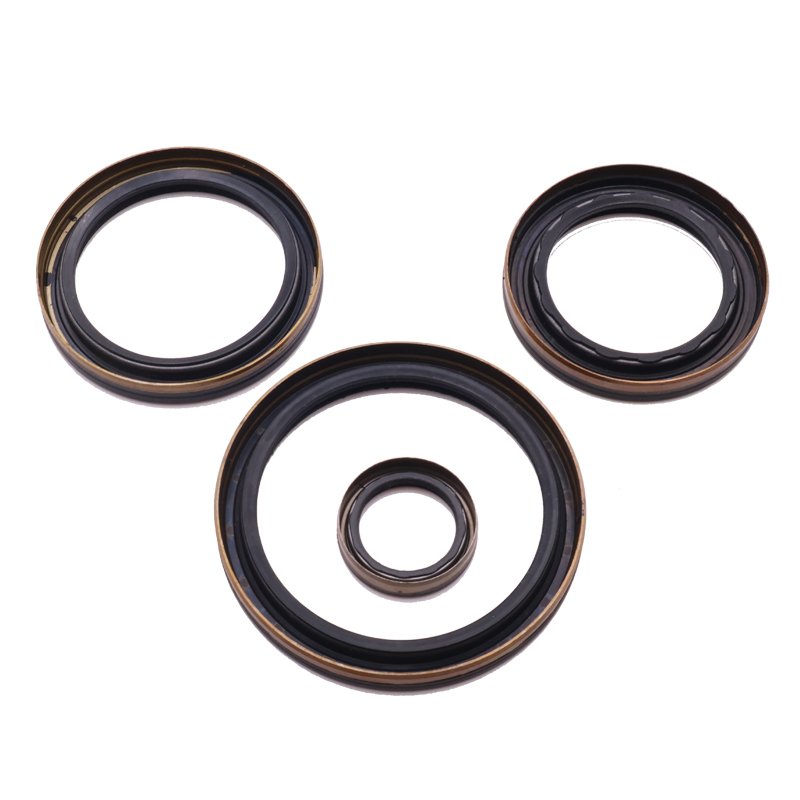

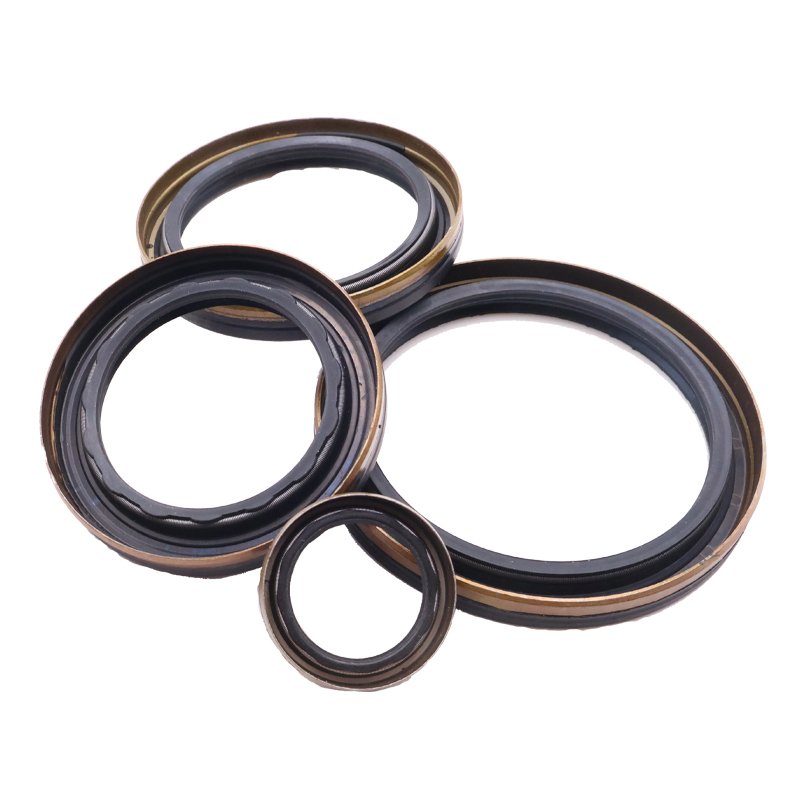

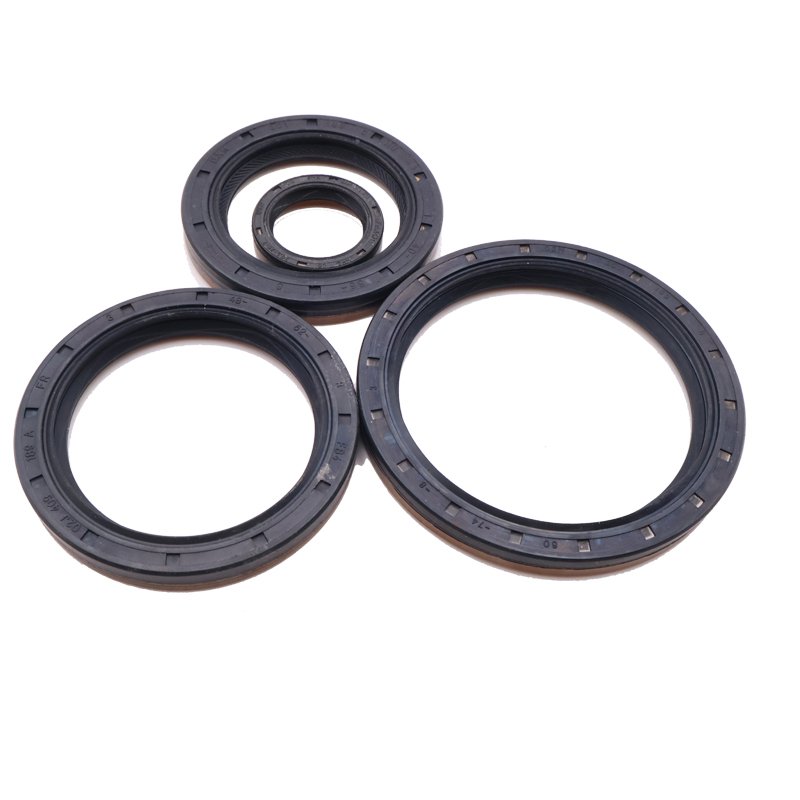

The product shown in the photo contains four circular oil seals with different inner and outer diameters. Because the exact installation position of each seal depends on the supplied kit configuration, customers should compare the actual dimensions and original components before ordering.

Professional transmission catalogs maintain dedicated seal kits for the 0AM DQ200 gearbox. These kits can include different combinations of axle seals, input shaft seals, O-rings and other transmission sealing components depending on the kit type.

This product is suitable for DSG transmission specialists, automatic gearbox rebuilders, automotive repair workshops, spare-parts wholesalers and professional transmission-parts distributors.

0AM DQ200 Oil Seal Kit Product Information

Basic product information:

Transmission: 0AM / DQ200
Transmission Type: 7-Speed DSG Dry Dual-Clutch Transmission
Product Type: Oil Seal Kit
Alternative Names: Transmission Seal Kit / Gearbox Oil Seal Set
Application: Transmission Sealing Repair and Rebuilding
Kit Configuration: Multiple oil seals in different sizes

The photo should be used as an important reference for the supplied configuration.

Since you have not provided individual OE numbers, this product page should not assign OE references to individual seals without confirmation.

That is especially important because professional DQ200 catalogs list several different transmission oil seals for different installation areas.

Transmission Oil Seal Function

Oil seals perform an important role inside the transmission.

Their main purpose is to keep transmission lubricant inside the gearbox while preventing dirt, moisture and other contamination from entering through rotating shaft openings.

Transmission oil seals normally work around rotating components such as shafts and drive outputs.

A properly functioning oil seal helps maintain:

• Transmission oil retention
• Shaft sealing
• Protection from external contamination
• Stable lubrication
• Gearbox reliability

Oil seals operate continuously while the transmission is running.

The sealing lip remains in contact with the rotating shaft surface, which means seal material and contact surfaces are exposed to friction, temperature changes and transmission oil.

Over time, the sealing lip can wear or lose elasticity.

DQ200 Input Shaft and Axle Sealing

The DQ200 gearbox uses several separate seals around different mechanical areas.

Professional DQ200 transmission catalogs identify both inner and outer input shaft oil seals, together with separate axle seals used on the transmission housing.

A specialist main-housing seal kit, for example, may contain:

• Left axle seal
• Right axle seal
• Inner input shaft oil seal
• Outer input shaft oil seal
• Additional O-rings and sealing components

depending on the specific kit configuration.

Your pictured product contains four main oil seals, so I recommend keeping the description general rather than claiming it contains every component found in a larger overhaul kit.

This prevents customers from assuming that O-rings, cover gaskets or other components are included when they are not visible in your actual product.

Why Oil Seal Replacement Matters

A damaged transmission oil seal can allow lubricant to escape from the gearbox.

Possible signs of sealing problems may include:

• Transmission oil leakage
• Oil around the gearbox housing
• Oil contamination near shaft areas
• Reduced gearbox oil level
• Visible deterioration of old seals

However, transmission leakage should not automatically be blamed on the oil seal itself.

Other possible leakage sources can include:

• Housing joints
• Cover gaskets
• Mechatronic seals
• Damaged shaft surfaces
• Transmission casing damage
• Incorrect previous installation

Professional diagnosis should identify the actual leakage point before replacement.

Oil Seal Condition During Transmission Overhaul

Oil seals are often inspected when a gearbox is already disassembled for repair.

Even when an old seal is not visibly leaking, technicians may decide to replace it during a major rebuild because accessing the seal again later could require significant disassembly.

During inspection, technicians should check:

• Seal lip condition
• Rubber hardness
• Cracks
• Deformation
• Contact surface wear
• Shaft condition
• Seal installation depth

A new oil seal cannot compensate for a badly worn or damaged shaft surface.

For this reason, the shaft or sealing surface should always be checked before installation.

Oil Seal Kit vs Complete Overhaul Kit

The 0AM DQ200 Oil Seal Kit should not be confused with a complete transmission overhaul kit.

An oil seal kit mainly focuses on shaft and housing sealing components.

A larger gasket and seal kit may contain additional items such as:

• O-rings
• Cover gaskets
• Mechatronic gaskets
• End caps
• Hydraulic sealing components

Professional DQ200 catalogs separately list Seal Kits, Gasket & Seal Kits, O-Ring and Seal Kits, and full Overhaul Kits, showing that these products have different scopes.

For your pictured product, Oil Seal Kit is therefore the more accurate product name.

Professional Installation Recommended

Transmission oil seals should be installed carefully.

Incorrect installation can damage the sealing lip before the gearbox is even put back into operation.

During installation, technicians should:

• Clean the sealing surface
• Inspect the shaft for wear
• Confirm correct seal dimensions
• Check seal orientation
• Avoid damaging the sealing lip
• Install the seal evenly
• Use appropriate installation tools

A seal installed at an angle can cause leakage.

The technician should also avoid scratching or damaging the shaft contact surface while removing the old seal.

Professional installation tools are recommended when required by the transmission repair procedure.

Check Seal Dimensions Before Ordering

Before ordering the 0AM DQ200 Oil Seal Kit, customers should compare the actual product carefully with the original components.

We recommend checking:

Transmission: 0AM / DQ200
Seal Quantity: Compare with product photo
Outer Diameter: Check original seal
Inner Diameter: Check shaft size
Seal Thickness: Compare carefully
Installation Position: Confirm during repair

Because several seals are used in the DQ200 transmission, selecting a kit only according to the words “DQ200 oil seal” may not be enough.

If customers are unsure, they can provide:

• Original seal photos
• Seal dimensions
• Transmission information
• Required quantity

for product checking.

For DQ200 Transmission Repair Workshops

The 0AM DQ200 Oil Seal Kit is suitable for professional customers including DSG transmission workshops, gearbox rebuilders, automotive repair businesses, transmission-parts wholesalers and international distributors.

Customers carrying out DQ200 repairs may also require clutch components, flywheels, mechatronic repair parts, oil pumps, TCUs, sensors and other sealing products.

KS supplies multiple mechanical, hydraulic and electronic components for professional DQ200 transmission repair.

Related 0AM DQ200 Transmission Parts

For larger hydraulic repairs, customers can also check our 0AM DQ200 Mechatronic Repair Kit.

For hydraulic pressure-system repair, our 0AM325577F DQ200 Mechatronic Oil Pump is also available.

Customers carrying out clutch-side repairs can browse our 0AM DQ200 Clutch Kit products and DQ200 Dual Mass Flywheel range.

These related products cover different repair areas of the same 0AM DQ200 transmission family.

Worldwide DQ200 Seal Kit Supply

KS supplies automatic transmission sealing, mechanical and electronic repair components to professional customers worldwide.

Our product range includes oil seal kits, overhaul kits, DSG clutch parts, dual mass flywheels, mechatronic units, oil pumps, valve bodies, TCUs, sensors and solenoids.

If you are looking for an 0AM DQ200 Oil Seal Kit or other DSG transmission sealing components, send us your product photo, required dimensions and quantity.

We support transmission workshops, rebuilders, wholesalers and distributors with product identification, wholesale quotations and worldwide supply.

Contact KS for 0AM DQ200 oil seal kit information and quotation.
