0AM DQ200 Hydraulic Accumulator Kit Improved Repair Type

0AM DQ200 Hydraulic Accumulator Kit for Mechatronic Repair

0AM DQ200 Hydraulic Accumulator Kit is an improved repair solution designed for the hydraulic pressure system of the 0AM DQ200 7-speed DSG mechatronic unit.

The DQ200 mechatronic system uses an electrically driven hydraulic pump together with a pressure accumulator to generate and store the hydraulic pressure required for clutch and gear-selection control. When the accumulator system or its mounting area develops a problem, the mechatronic unit may have difficulty maintaining the required hydraulic pressure.

Professional DQ200 repair suppliers offer improved accumulator systems that use a replacement hydraulic accumulator together with a dedicated location housing or adapter. Some kits also include a special installation wrench, matching the general configuration visible in your product photo.

This product is suitable for DSG transmission repair workshops, mechatronic specialists, automatic transmission rebuilders, automotive spare-parts wholesalers and professional transmission-parts distributors.

0AM DQ200 Hydraulic Accumulator Kit Product Information

Basic product information:

Transmission: 0AM / DQ200
Transmission Type: 7-Speed DSG Dry Dual-Clutch Transmission
Product Type: Hydraulic Accumulator Repair Kit
Version: Improved Repair Type
Installation Area: Mechatronic Hydraulic System
Application: Hydraulic Pressure Repair and Mechatronic Rebuilding

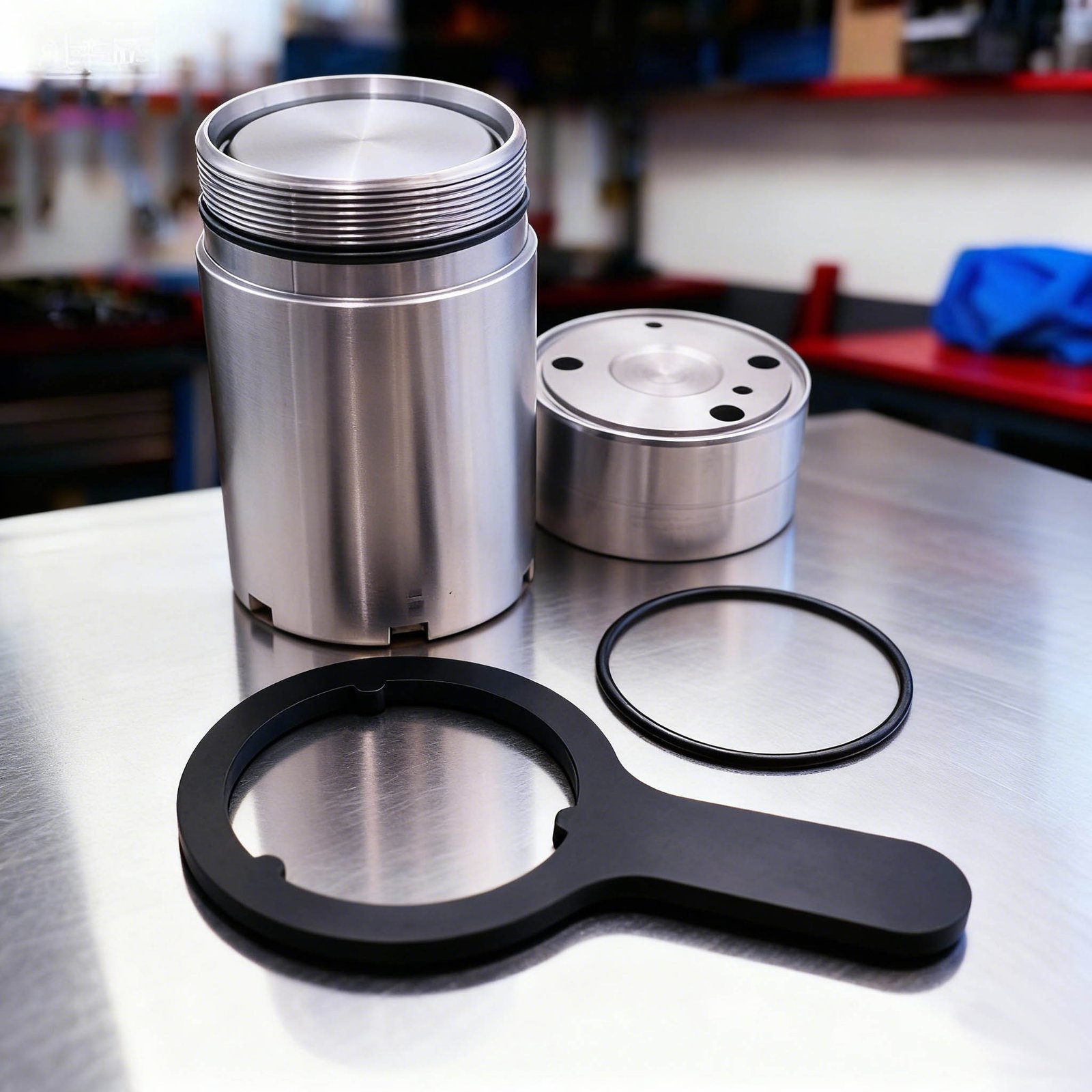

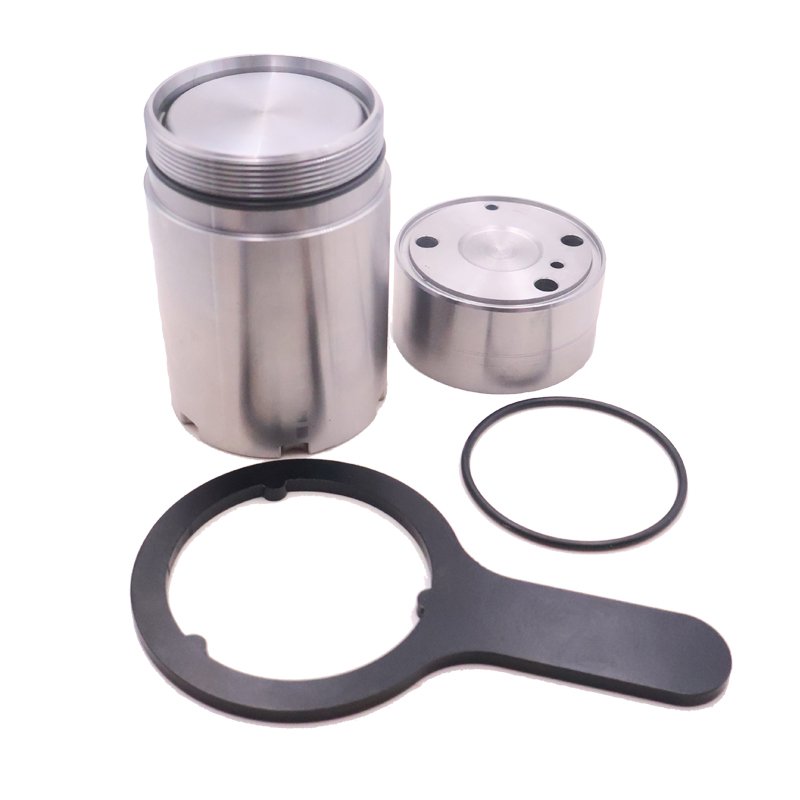

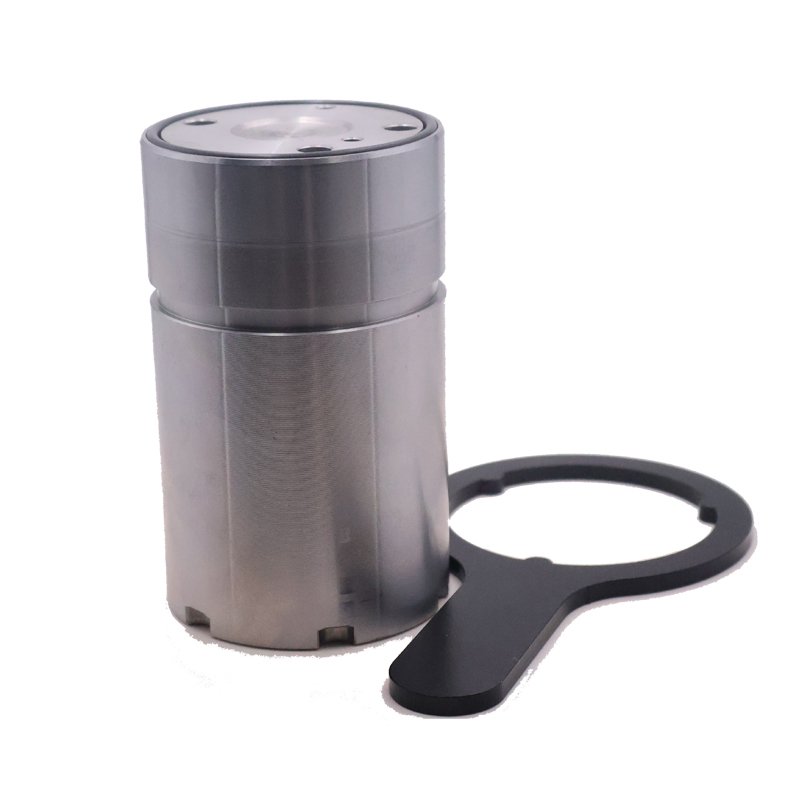

According to the product image, the supplied set contains multiple accumulator-related metal components, an O-ring and an installation wrench.

Because no manufacturer number or OE reference has been provided, the product page should not assign a specific OE number to this kit.

The actual product photo should therefore be used as the final reference for supplied contents.

Function of the DQ200 Hydraulic Accumulator

The hydraulic accumulator stores pressurized fluid produced by the mechatronic hydraulic pump.

The pump does not need to operate continuously at full load. Instead, hydraulic pressure is generated and stored so that it is available when the transmission needs to operate the clutch or move the gear selectors.

The accumulator system therefore works together with:

• Mechatronic oil pump
• Electric pump motor
• Hydraulic valve body
• Solenoid valves
• Pressure-control system
• Gear actuators
• Clutch actuators

When the system is functioning correctly, hydraulic pressure can be built and maintained within the mechatronic unit.

Professional DQ200 specialists describe the accumulator as a pressure-storage component used to support rapid hydraulic operation inside the 0AM/0CW DQ200 mechatronic system.

Why an Improved Accumulator Repair Kit Is Used

One known repair area on DQ200 mechatronic units is the location where the hydraulic accumulator mounts into the hydraulic housing.

Professional Volkswagen repair-kit information notes that cracks can develop in the hydraulic housing around the accumulator mounting area. These problems can result in hydraulic pressure loss or difficulty building pressure.

Improved aftermarket repair systems can use a different accumulator configuration together with an adapter or location housing.

One specialist describes its improved replacement accumulator as having a slightly smaller circumference than the original design and requiring a dedicated housing adapter to locate it correctly in the valve-body bore.

This is why the metal adapter component is an important part of this style of repair kit.

The replacement system should be installed according to the design of the supplied kit rather than treating the accumulator as a direct loose replacement.

P17BF and P189C Hydraulic Pressure Faults

The DQ200 accumulator repair market frequently associates this type of repair with fault codes:

P17BF
P189C

Professional DSG specialists describe P17BF as a hydraulic-pressure-related fault and P189C as being associated with excessive pressure build-up time in the DQ200 mechatronic system.

Possible symptoms may include:

• Transmission warning message
• Delayed gear engagement
• Difficulty selecting gears
• Frequent hydraulic pump operation
• Mechatronic pressure problems
• Gearbox entering limp mode

However, these symptoms and fault codes should not automatically be treated as proof that the accumulator itself has failed.

Similar hydraulic problems can also be caused by:

• Cracked hydraulic housing
• Worn oil pump
• Pump motor problems
• Internal hydraulic leakage
• Damaged seals
• Valve-body problems
• Pressure-control faults

Professional diagnosis should therefore be completed before replacement.

Accumulator, Adapter and Installation Tool

The product photo shows that this is more than a simple replacement seal.

The improved kit includes the main accumulator repair components together with a dedicated wrench.

This type of installation tool is also supplied with professional DQ200 accumulator repair kits because the accumulator has to be fitted securely into its mounting location.

The supplied O-ring provides sealing between the relevant mating surfaces.

During installation, technicians should confirm:

• O-ring condition
• Adapter seating position
• Thread condition
• Hydraulic housing condition
• Accumulator mounting condition

The components should not be forced into position if the original housing is severely damaged.

Accumulator and Mechatronic Oil Pump Work Together

The accumulator and oil pump perform different functions.

The oil pump generates hydraulic pressure.

The accumulator stores hydraulic pressure.

If the accumulator cannot retain pressure, the pump may be required to operate more frequently.

If the pump itself is worn or unable to generate sufficient pressure, replacing the accumulator alone will not solve the problem.

For this reason, technicians repairing the DQ200 hydraulic system should inspect both the accumulator and pump system.

Your 0AM325577F DQ200 Mechatronic Oil Pump is therefore a closely related repair component.

Improved Accumulator vs Complete Mechatronic Repair Kit

The 0AM DQ200 Hydraulic Accumulator Kit should not be confused with the larger mechatronic overhaul kit you uploaded previously.

This product focuses specifically on the accumulator and its mounting/sealing system.

A larger 0AM DQ200 Mechatronic Repair Kit can include additional components such as:

• Hydraulic housing
• Accumulator
• Filter
• Gaskets
• O-rings
• Bolts
• Other mechatronic rebuild parts

Genuine Volkswagen Group repair-kit listings show that full DQ200 accumulator-body overhaul packages can include a replacement hydraulic housing, accumulator, filter, seals and additional service hardware.

Therefore, these two products should remain as separate WooCommerce pages.

One is a focused accumulator repair solution, while the other is a more comprehensive mechatronic rebuilding kit.

Professional Installation Recommended

The 0AM DQ200 Hydraulic Accumulator Kit is intended for professional transmission repair.

The mechatronic hydraulic system operates under significant pressure, so technicians should use appropriate procedures and tools when dismantling and rebuilding the unit.

Before installation, inspect the hydraulic housing carefully for:

• Cracks
• Damaged threads
• Deformation
• Contamination
• Previous repair damage
• Sealing-surface damage

The mechatronic system should remain clean throughout the repair.

Professional suppliers also recommend using fresh correct-specification mechatronic hydraulic fluid when rebuilding an opened DQ200 mechatronic unit.

After repair, technicians should verify pressure build-up and transmission operation with professional diagnostic equipment.

Check Compatibility Before Ordering

Before ordering the 0AM DQ200 Hydraulic Accumulator Kit, customers should check the original mechatronic unit and compare the repair configuration.

We recommend confirming the transmission model, accumulator mounting design, hydraulic housing condition, dimensions, kit appearance and required quantity.

Because different repair systems can use different accumulator and adapter designs, customers should not assume that every improved DQ200 accumulator kit is identical.

If unsure, send clear photos of the original accumulator area and mechatronic unit for checking.

Related 0AM DQ200 Transmission Parts

For a more comprehensive hydraulic rebuild, customers can also check our 0AM DQ200 Mechatronic Repair Kit.

For hydraulic pressure generation, our 0AM325577F DQ200 Mechatronic Oil Pump is another closely related product.

Customers requiring a complete hydraulic and electronic assembly can also check our 0AM DQ200 Mechatronic Unit.

For gearbox sealing service, our 0AM DQ200 Oil Seal Kit is also available.

Together, these products cover several levels of DQ200 hydraulic, mechatronic and sealing repair.
