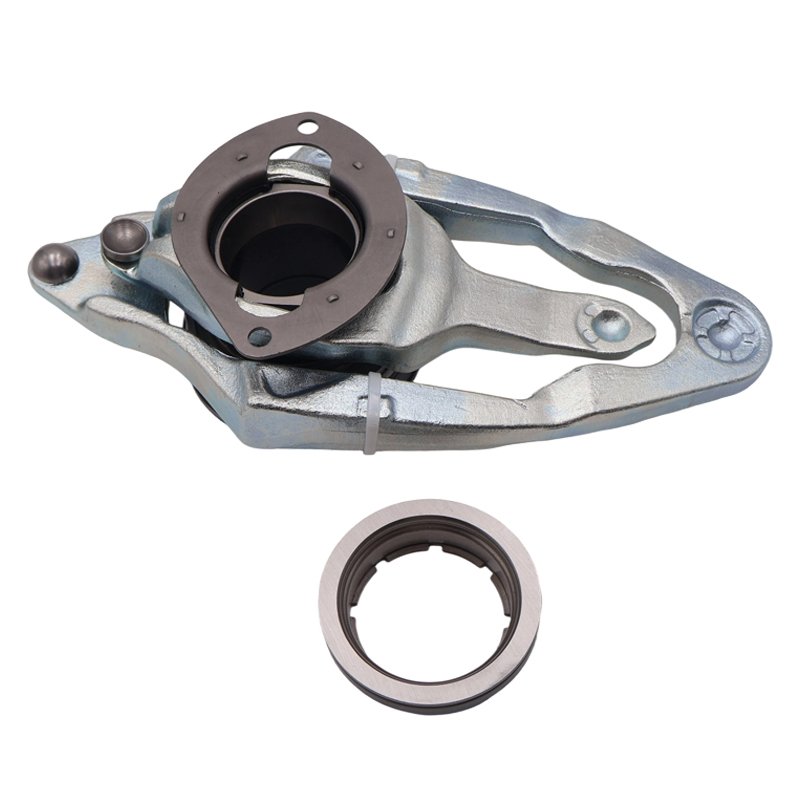

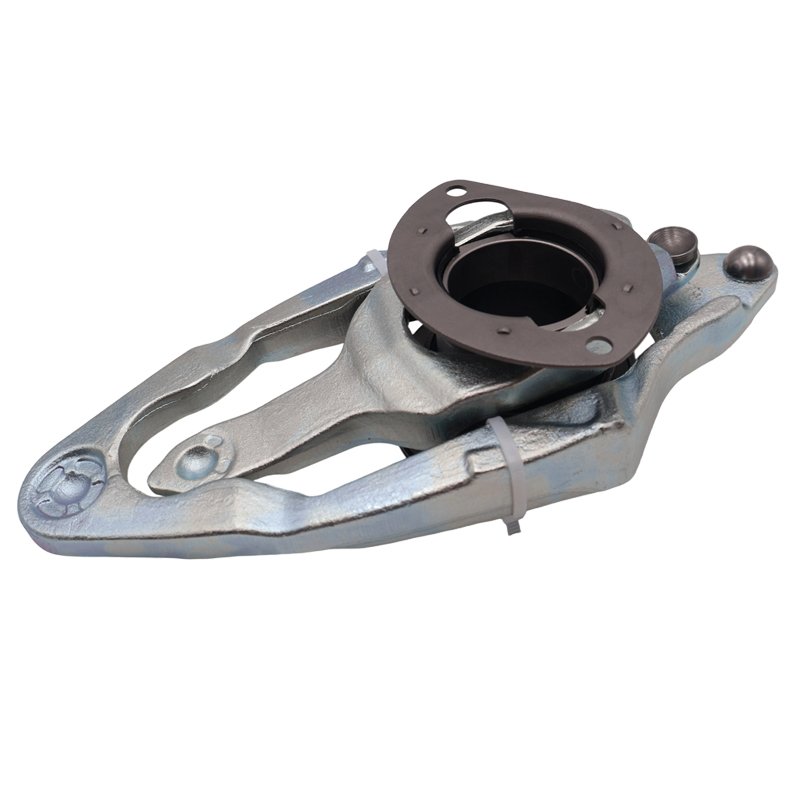

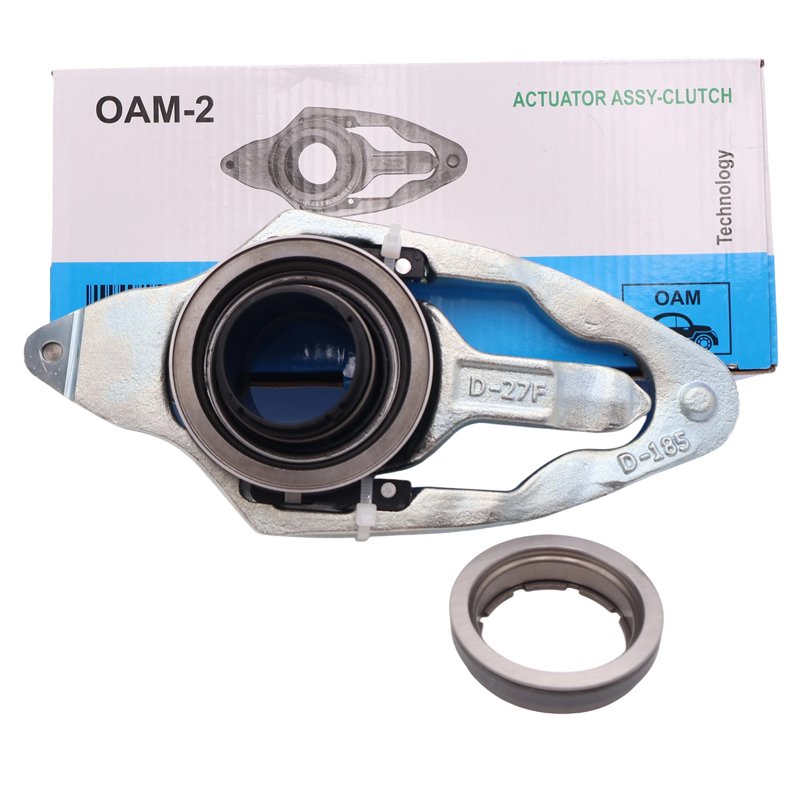

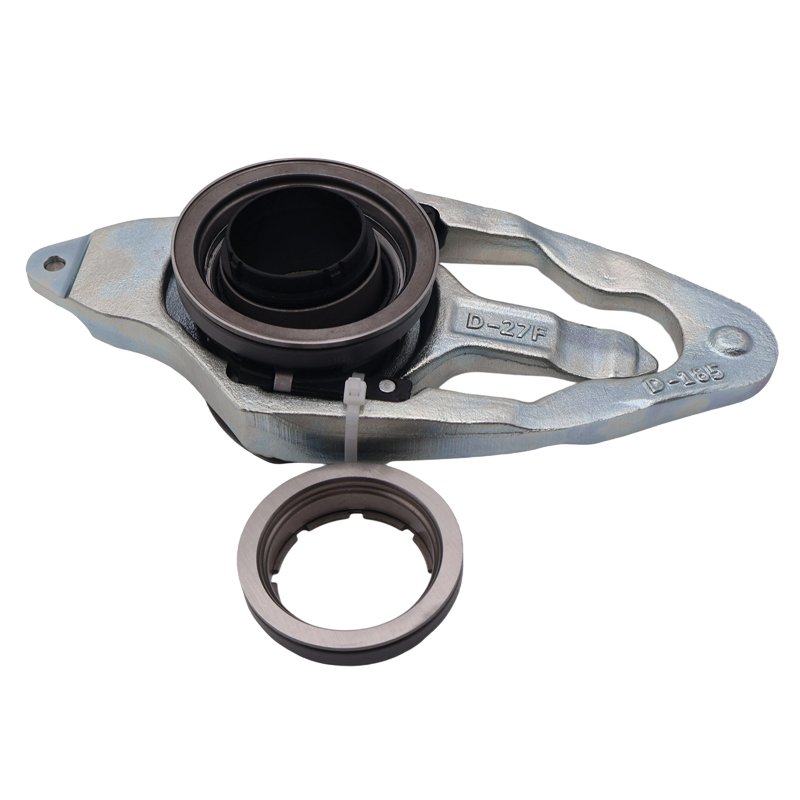

0AM DQ200 Clutch Release Fork

The 0AM DQ200 Clutch Release Fork is a mechanical clutch-control component designed for DQ200 7-speed dry dual-clutch transmission repair and rebuilding. The release fork works between the clutch actuator mechanism and the dual-clutch assembly, transferring controlled movement so the clutch can engage and disengage correctly during transmission operation.

Specialist transmission parts catalogs commonly list 0AM141147P and 0AM141198G together as references for the DQ200 0AM DSG7 clutch fork kit. Different clutch generations and transmission configurations exist, so the original fork design should always be compared before replacement.

This product is suitable for professional DSG repair workshops, transmission rebuilders, automotive parts distributors and wholesalers. When the transmission has already been disassembled, clear photographs of the original fork and bearing areas are useful for confirming the correct version.

0AM DQ200 Clutch Release Fork Function

The 0AM DQ200 Clutch Release Fork forms part of the mechanical clutch actuation system. The DQ200 transmission uses two dry clutches, and controlled fork movement is required to apply and release the clutch mechanisms during different gear selections.

The fork works together with components such as:

• Clutch release bearings
• Push rod and actuator components
• Dual-clutch assembly
• Mechanical pivot and support points
• Mechatronic control system

During transmission operation, the electronic and hydraulic control system determines the required clutch movement. Mechanical actuator components then transfer this movement to the release system.

Wear or damage in the fork assembly can affect clutch movement and may contribute to abnormal clutch operation.

0AM141147P and 0AM141198G References

The references 0AM141147P and 0AM141198G are commonly listed together for DQ200 clutch fork repair kits. Current specialist listings identify the combination specifically as a DQ200 0AM DSG7 clutch fork kit.

However, these numbers should not automatically be applied to every individual DQ200 fork. Depending on whether the product is supplied as one fork, a pair of forks, or a fork-and-bearing repair set, the correct reference can differ.

For accurate matching, customers can provide:

• Transmission model
• Original clutch fork photos
• Original part number
• Fork shape and mounting design
• Bearing configuration
• Clutch generation
• Required quantity

Physical comparison is especially important when the original transmission has previously been repaired.

DQ200 Clutch Fork Wear and Inspection

During clutch replacement or transmission rebuilding, technicians should inspect the release fork system carefully.

Common inspection areas include:

• Fork contact surfaces
• Pivot points
• Release bearing condition
• Fork deformation
• Excessive mechanical play
• Push rod contact areas
• Clutch actuator movement

A worn fork may affect the accuracy of clutch engagement. However, symptoms such as shudder, poor gear engagement or clutch-related fault codes should not automatically be attributed to the fork itself.

The clutch assembly, actuator mechanism, mechatronic system, release bearing and transmission adaptation should also be checked.

DQ200 Clutch Repair Application

The DQ200 is a 7-speed dry dual-clutch transmission widely used within Volkswagen Group applications. Because the clutch system uses mechanical release components rather than a conventional torque-converter arrangement, accurate fork geometry and bearing movement are particularly important.

The 0AM DQ200 Clutch Release Fork is generally replaced during clutch-system repair when wear or damage has been confirmed.

Professional technicians should inspect surrounding parts before installation. If the release bearing, push rod or clutch assembly is already worn, replacing only the fork may not correct the complete problem.

Correct installation procedures and clutch adaptation should be performed according to the vehicle and transmission configuration.

Related DQ200 Clutch Parts

We supply various DQ200 clutch and transmission repair components, including:

• DQ200 dual clutch assemblies
• Push rod pistons
• Clutch release bearings
• Mechatronic units
• Transmission control units
• Valve body repair parts
• Pressure accumulators
• Transmission overhaul components

Customers performing complete DQ200 repairs can send us original component photos and a purchasing list for product matching.

0AM DQ200 Clutch Release Fork Wholesale Supply

We supply DSG transmission repair components to professional workshops, rebuilders, distributors and wholesalers worldwide.

For 0AM DQ200 Clutch Release Fork inquiries, we can provide current product photos, configuration information, availability, packaging details and wholesale quotations.

Mixed DQ200 transmission parts orders are welcome.

Contact Us for DQ200 Clutch Parts

If you are looking for an 0AM DQ200 Clutch Release Fork, clutch fork kit or other DSG transmission repair components, contact us with the original product photos and required quantity.

Providing clear fork and bearing photos helps us identify whether the product corresponds to references 0AM141147P, 0AM141198G or another DQ200 configuration
