JF506E Land Rover Solenoid Kit

The JF506E Land Rover Solenoid Kit is a nine-piece electro-hydraulic solenoid set used in selected Land Rover Freelander vehicles equipped with the Jatco JF506E five-speed automatic transmission. Professional transmission-parts catalogs identify 98420 as the standard solenoid kit for Land Rover Freelander, Jaguar and Volkswagen versions of the JF506E. This configuration should not be confused with the different Mazda and Ford solenoid arrangement commonly listed under reference 98420A.

The complete set contains nine solenoids that perform gear-shift, pressure-regulation, torque-converter lockup and clutch or brake timing functions inside the transmission valve body. Because each valve has a specific hydraulic and electrical role, correct position identification is important during rebuilding.

This product is intended for professional automatic transmission workshops, valve-body rebuilders, Land Rover specialists, distributors and wholesalers.

JF506E Land Rover Solenoid Kit Components

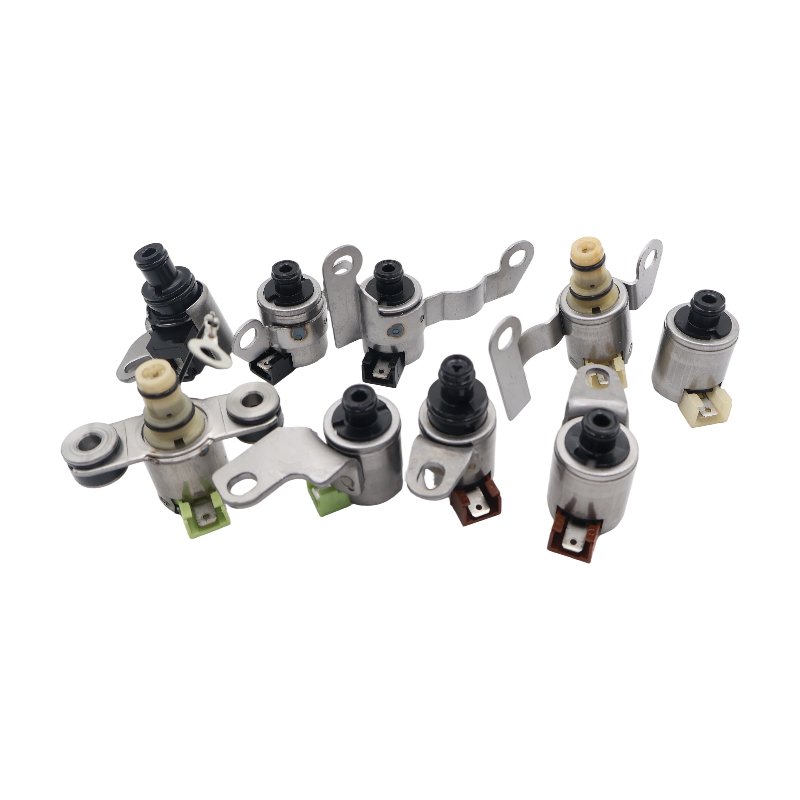

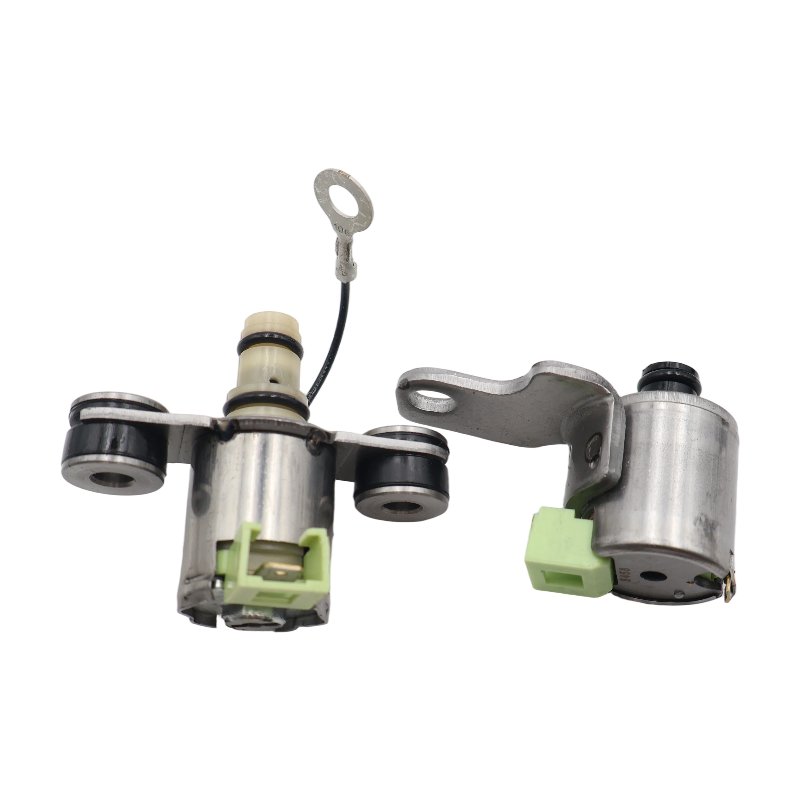

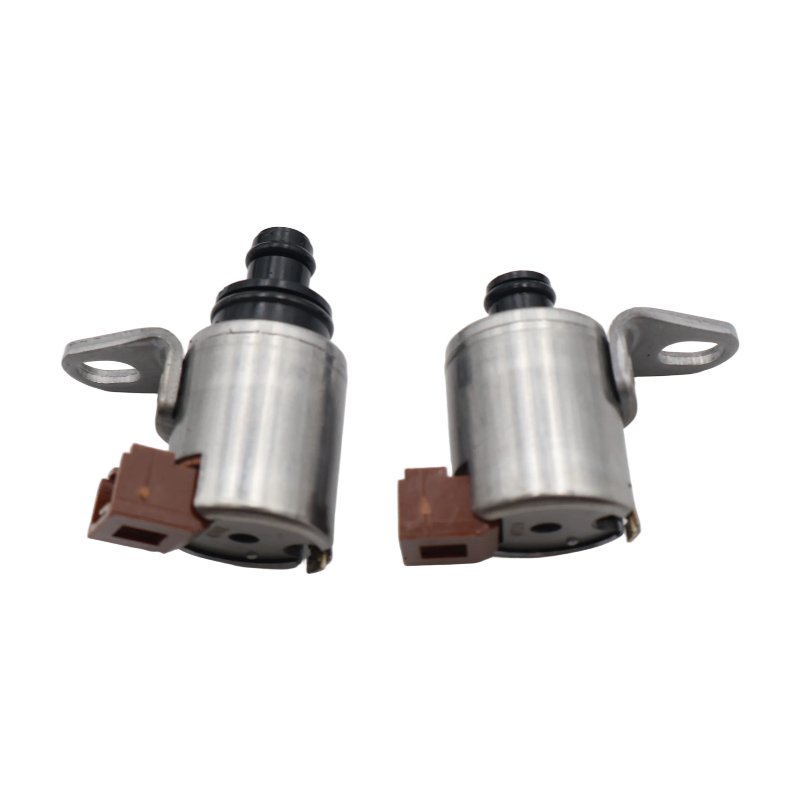

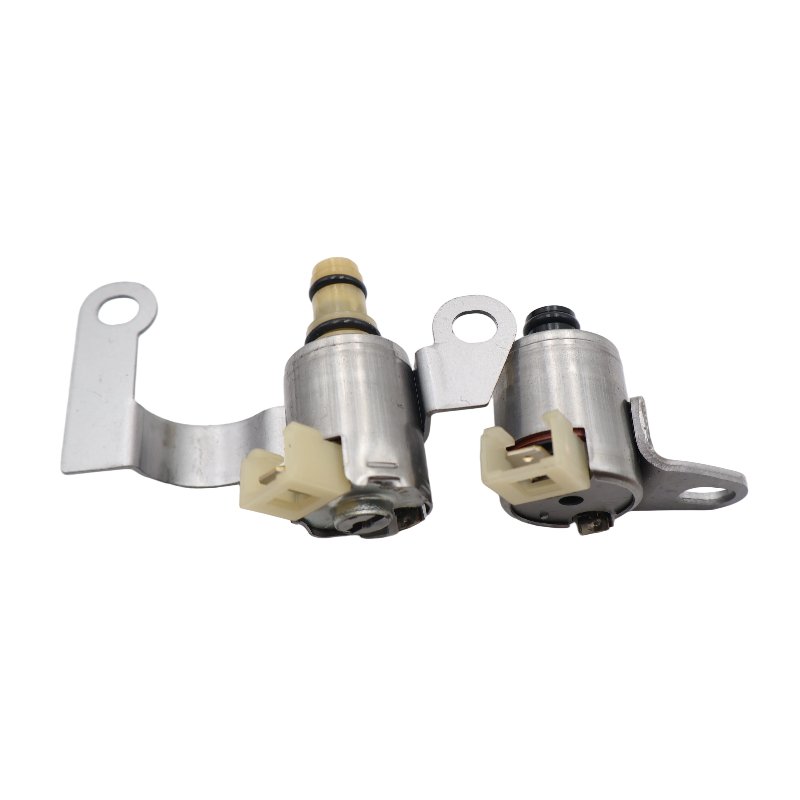

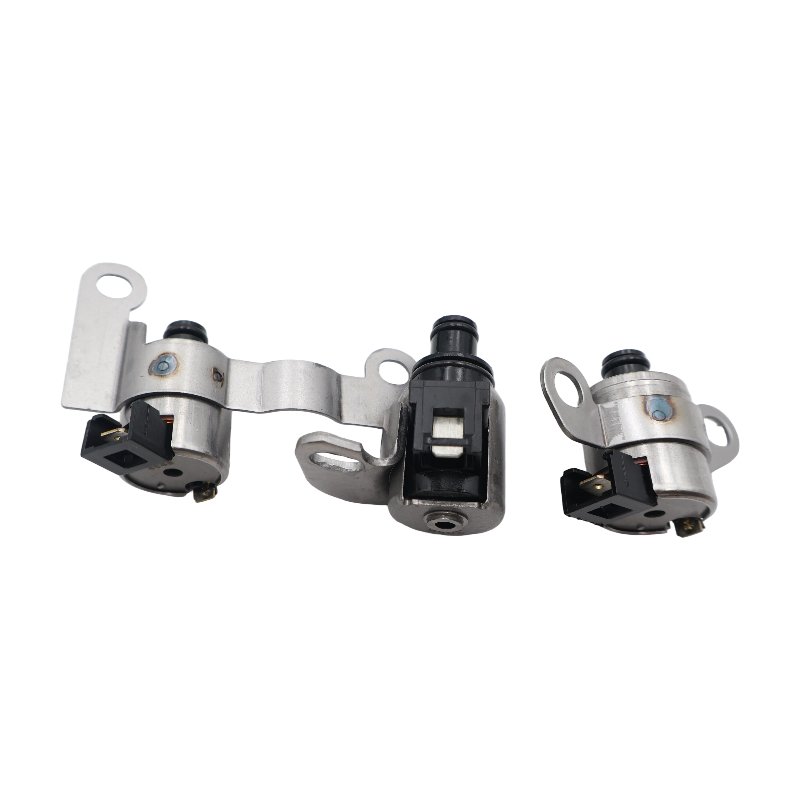

The JF506E Land Rover Solenoid Kit contains nine individual valves. Technical JF506E documentation identifies the Jaguar and Freelander configuration with the following functions:

• Shift Solenoid A
• Shift Solenoid B
• Shift Solenoid C
• Reduction Timing Solenoid
• 2-4 Brake Timing Solenoid
• 2-4 Brake Duty Solenoid
• Line Pressure Solenoid
• Torque Converter Clutch Solenoid
• Low Clutch Timing Solenoid

ATSG documentation confirms that the Jaguar and Freelander versions use nine solenoids and notes that these two configurations share the same solenoid arrangement.

For Volkswagen 09A terminology, the corresponding valve positions are commonly identified as N88, N89, N90, N91, N92, N93, N281, N282 and N283. Sonnax groups Jaguar, Land Rover and VW together for this JF506E solenoid identification.

98420 JF506E Solenoid Kit Reference

The industry reference 98420 is commonly used for the JF506E solenoid kit fitted to Jaguar, Land Rover Freelander and Volkswagen applications. Cobra specifically identifies 98420 as the nine-solenoid kit for these applications and states that it is not the correct kit for Mazda or Ford JF506E transmissions.

This distinction is especially important for your website because you now have two similar JF506E solenoid products:

Land Rover / Jaguar / VW version = 98420

Ford / Mazda version = 98420A

These products should have separate pages because the valve-body and solenoid configurations differ.

Land Rover Freelander JF506E Application

The JF506E is a five-speed electronically controlled automatic transmission used in several vehicle brands. Land Rover used this transmission in selected Freelander applications, while Jaguar used related JF506E units in the X-Type.

Although these applications belong to the same transmission family, buyers should still confirm the valve-body configuration and original solenoid set before ordering.

For accurate product matching, customers can provide the transmission model, vehicle information, original solenoid photos, valve-body photos and required quantity.

If the transmission has previously been rebuilt or replaced, direct comparison with the original solenoid configuration is especially important.

Solenoid Function and Transmission Operation

The JF506E valve body relies on the solenoids to convert electronic TCM commands into hydraulic actions. Shift solenoids direct fluid through different circuits, while timing and pressure-control solenoids influence clutch application, brake operation and line pressure.

The EPC or line-pressure solenoid is particularly important because it regulates main hydraulic pressure according to transmission operating conditions. The TCC solenoid controls torque-converter clutch operation, while the other valves coordinate shift and timing functions.

A faulty solenoid may contribute to harsh shifting, delayed engagement, incorrect gear changes, pressure faults or torque-converter lockup problems.

These symptoms do not automatically mean the entire solenoid set is defective. Valve-body wear, contaminated fluid, wiring damage, internal clutch wear or hydraulic leakage can create similar problems. Professional diagnosis should be performed before replacement.

Ford / Mazda Version Is Different

One of the most important details for this product is that the Land Rover version should not be confused with the Ford/Mazda JF506E solenoid kit.

Sonnax specifically states that the Mazda version cannot be interchanged with the Jaguar, Land Rover and Volkswagen valve-body configuration. Cobra likewise separates the kits into 98420 and 98420A.

Therefore, customers should identify their vehicle and original valve body before ordering.

Professional Valve Body Repair

Before installing the JF506E Land Rover Solenoid Kit, technicians should inspect the valve body for contamination, worn bores and damaged hydraulic passages. The internal wiring harness and connectors should also be checked.

If the transmission fluid contains heavy metal particles or burnt clutch material, the underlying mechanical problem should be repaired before new solenoids are installed.

After repair, fluid level, transmission operation and applicable diagnostic functions should be checked according to professional procedures.

Related JF506E Transmission Parts

We supply JF506E valve-body components, overhaul kits, friction plates, filters, seals, gaskets and other automatic transmission repair parts.

Customers rebuilding complete JF506E units can combine the solenoid kit with related hydraulic and overhaul parts in one order.

JF506E Land Rover Solenoid Kit Wholesale Supply

We supply JF506E Land Rover Solenoid Kit products to professional transmission workshops, rebuilders, distributors and wholesalers worldwide.

Contact us with the vehicle application, original solenoid photos and required quantity for configuration confirmation, current availability and wholesale quotation.
