AB60E AB60F Piston Kit

The AB60E AB60F Piston Kit is a three-piece bonded piston set used in Toyota and Lexus six-speed automatic transmission rebuilding. A current Alto product bulletin lists an AB60E/F 2007-on three-piece piston kit and identifies three corresponding Toyota OEM references: 35669-0C020, 35621-0C020 and 35602-34010. These pistons form part of the internal clutch apply and balance system and are normally inspected or replaced during a complete transmission overhaul.

The AB60E and AB60F are heavy-duty six-speed automatic transmissions used in rear-wheel-drive and four-wheel-drive applications. They are commonly found in vehicles such as Toyota Tundra, Sequoia and Land Cruiser, as well as Lexus LX570 applications, depending on year, drivetrain and market. Because internal transmission parts can vary by production specification, customers should confirm the transmission code and compare the original pistons before ordering.

AB60E AB60F Piston Kit Components

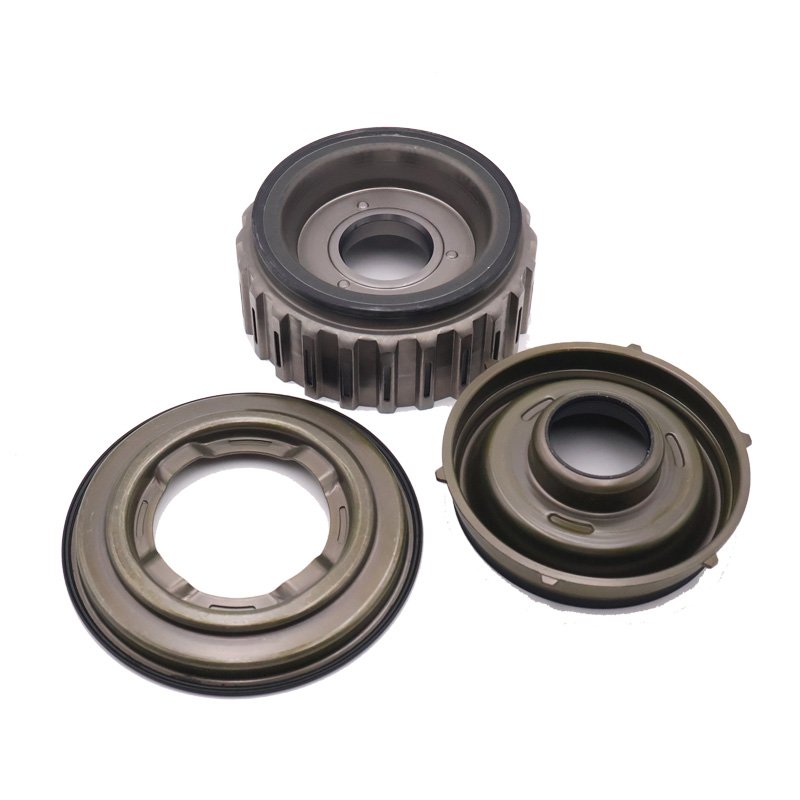

The common AB60E AB60F Piston Kit contains three molded or bonded piston components. Industry catalog information identifies them as:

• 35669-0C020 – C2 direct balance piston
• 35621-0C020 – coast clutch piston

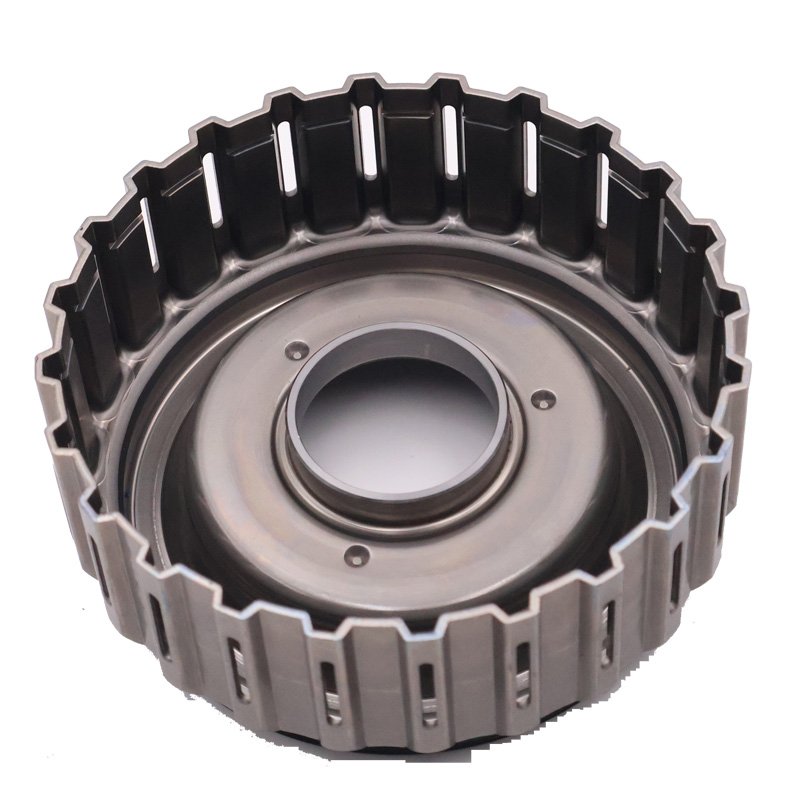

• 35602-34010 – forward clutch piston / coast drum piston

These references describe the individual piston components rather than one single Toyota OE number for the complete aftermarket kit. Alto lists the combined three-piece package as part number 208670, while other transmission-parts suppliers may use their own kit numbers.

For a generic replacement kit, the Toyota numbers are best used as cross-reference numbers unless the product is confirmed as genuine Toyota.

Bonded Piston Function in the AB60E and AB60F

A bonded transmission piston combines a metal piston structure with an integrated sealing material. During operation, hydraulic pressure acts on the piston to apply or balance a clutch element inside the transmission. The bonded sealing surface must maintain pressure while moving smoothly inside its drum or bore.

The AB60E AB60F Piston Kit supports several internal clutch functions. The C2 direct balance piston assists the direct clutch hydraulic system, the coast clutch piston works with the coast clutch assembly, and the forward clutch piston is part of the forward clutch and coast-drum area.

Heat, age, hardened sealing material, contamination or mechanical damage can reduce sealing performance. When pressure leaks past a worn piston seal, clutch apply timing and holding capacity may be affected.

Transmission Rebuild Inspection

During an AB60E or AB60F rebuild, technicians should inspect the piston surfaces and bonded rubber carefully. Cracking, hardening, deformation or damaged sealing lips are reasons to consider replacement.

Related components should also be checked, including clutch drums, friction plates, steel plates, return springs, bushings, sealing rings and hydraulic passages. Replacing a piston alone will not correct a problem caused by worn friction material, damaged drums or incorrect hydraulic pressure.

Before assembly, all piston contact surfaces should be clean and free from burrs or debris. Suitable assembly lubricant or transmission fluid should be used according to professional rebuilding procedures. Correct piston orientation and seal protection are important during installation.

AB60E and AB60F Application Matching

The AB60E is generally associated with rear-wheel-drive configurations, while the AB60F is used in four-wheel-drive applications. Both belong to the same Toyota/Aisin six-speed transmission family and share many internal service components.

Specialist transmission suppliers list bonded piston repair parts for both AB60E and AB60F. However, vehicle model alone should not be the only identification method. Production year, transmission code, original piston design and OE reference should be checked before ordering.

For accurate matching, customers can provide the transmission model, original piston photos, piston dimensions, vehicle information and required quantity.

Related AB60E AB60F Transmission Parts

We supply additional AB60E and AB60F transmission repair components, including overhaul kits, friction plate kits, steel plate kits, oil seals, gaskets, bearings, bushings, filters, valve body components and other transmission hard parts.

Customers rebuilding a complete transmission can combine the piston kit with related overhaul components in one order. Sending a parts list and original product photos helps us confirm the required specification.

AB60E AB60F Piston Kit Wholesale Supply

We supply AB60E AB60F Piston Kit products to professional transmission workshops, gearbox rebuilders, distributors and wholesalers worldwide. Product photos, kit configuration, availability, packing information and wholesale quotations can be provided before ordering.

Contact us with the transmission model, required quantity and original part information for product matching and quotation.
