0CK DL382 Transmission Service Kit Filter Gasket Set

0CK DL382 Transmission Service Kit for S tronic Gearbox

0CK DL382 Transmission Service Kit is designed for professional maintenance and servicing of the 0CK DL382 7-speed S tronic dual-clutch transmission. The kit contains commonly replaced filtration and sealing components required during transmission oil service and routine gearbox maintenance.

Audi technical documentation identifies 0CK as the DL382-7F 7-speed dual-clutch transmission, marketed as S tronic.

During normal operation, transmission oil circulates through the hydraulic, clutch and mechanical sections of the gearbox. Filters and sealing components help keep the transmission oil circuit clean and properly sealed. Replacing service components during scheduled maintenance can help technicians maintain correct oil flow and reduce the risk of contamination entering sensitive hydraulic areas.

This product is suitable for automatic transmission repair workshops, Audi S tronic specialists, gearbox rebuilders, wholesalers and transmission parts distributors.

0CK DL382 Transmission Service Kit Components

The kit shown contains several transmission maintenance components used during 0CK DL382 servicing.

Visible components include:

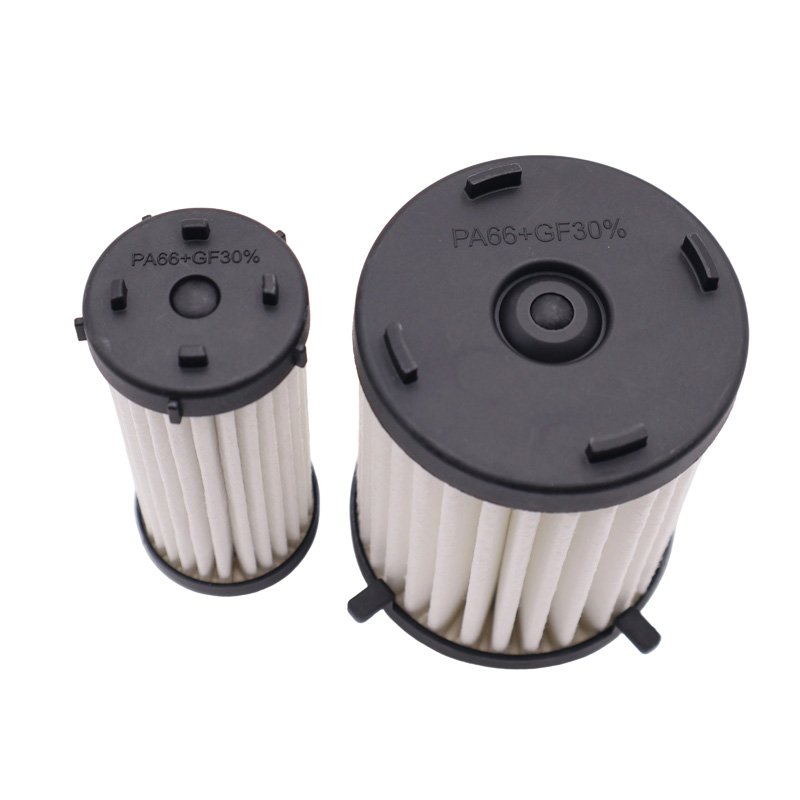

• Large transmission filter element
• Small transmission filter element
• Suction filter / strainer assembly

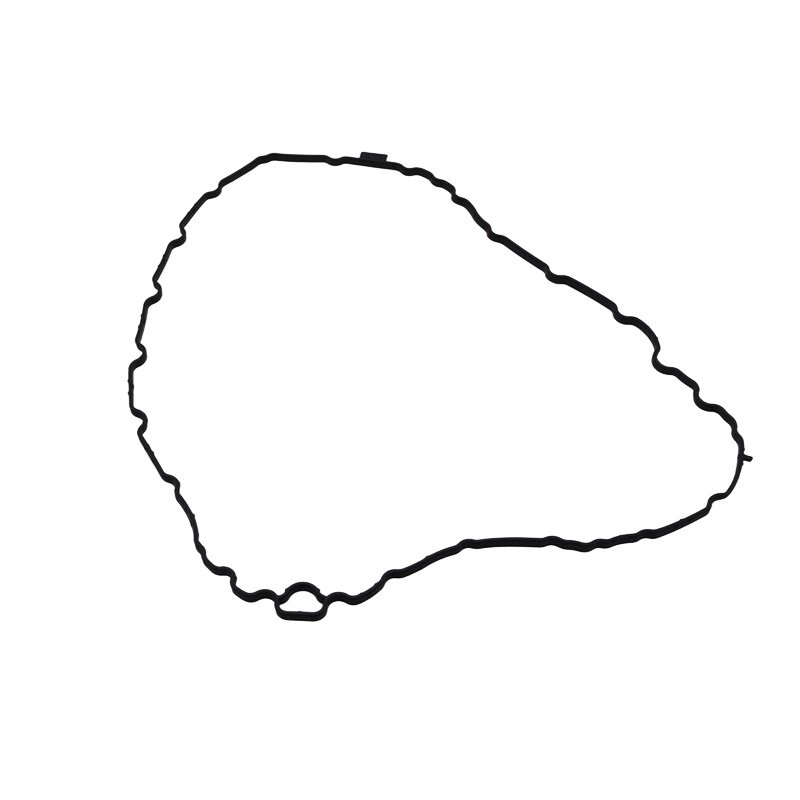

• Transmission housing or oil pan gasket
• Sealing O-rings

Current 0CK DL382 service kits on the transmission parts market commonly include pressure filters, a suction filter, oil pan gasket and sealing rings.

Because kit configurations may vary according to production batch, transmission version and supplier specification, customers should always use the actual product photo and confirmed packing list as the final reference.

Function of the DL382 Transmission Filters

Transmission filters help remove particles and contamination from the transmission oil circuit.

During gearbox operation, normal mechanical wear can create fine particles. Transmission oil can also collect residue and contaminants over time.

The filter system helps prevent these particles from circulating continuously through hydraulic and mechanical transmission components.

The 0CK DL382 system uses multiple filtration components. Current maintenance kits are sold with both pressure and suction filter elements, reflecting the different filtration requirements within the gearbox oil circuit.

Regular filter replacement during transmission servicing can help maintain clean oil circulation and support normal hydraulic operation.

Oil Pan Gasket and Sealing Components

The service kit also contains sealing parts required when opening and servicing the transmission.

The large perimeter gasket provides sealing between transmission housing components and helps prevent transmission fluid leakage after reassembly.

O-rings are used at various oil passages, filter connections and sealing points.

These rubber components are exposed to transmission oil, heat and pressure during operation. Over time, they can harden, flatten or lose sealing performance.

For this reason, professional transmission technicians often replace seals and O-rings when performing gearbox maintenance instead of reinstalling aged sealing components.

0CK DL382 S tronic Maintenance Application

The 0CK DL382 Transmission Service Kit is primarily intended for transmission oil and filter maintenance.

During servicing, technicians may:

• Drain old transmission fluid
• Remove transmission covers or oil pan components
• Replace filter elements
• Replace sealing rings
• Inspect transmission oil condition
• Clean sealing surfaces
• Reassemble the transmission
• Refill with the correct transmission fluid

The exact service procedure should follow the applicable transmission repair information and workshop requirements.

Technicians should also confirm the transmission version before disassembly because early and later 0CK transmission versions can use different sealing components. Specialist 0CK parts catalogs specifically distinguish between early and later oil-pan gasket designs.

Why Transmission Service Kits Are Useful

Using a complete maintenance kit can be more convenient than sourcing every filter and seal individually.

For professional workshops, a prepared kit helps reduce missing components during servicing and simplifies parts preparation before the vehicle enters the workshop.

Transmission wholesalers can also stock service kits as a practical maintenance product for customers regularly working with DL382 gearboxes.

Typical buyers include:

• Audi transmission repair workshops
• S tronic specialists
• Automatic transmission rebuilders
• Automotive spare parts wholesalers
• Transmission parts distributors
• International automotive parts traders

Check Transmission Version Before Ordering

Before purchasing this service kit, customers should confirm that the original gearbox is an 0CK / DL382 transmission.

We recommend checking:

• Transmission code
• Original filter shape
• Gasket design
• Filter size
• Oil pan or housing version
• Existing seal configuration
• Product photo
• Required quantity

This is important because transmission maintenance components may change between production versions.

If you are unsure about the correct kit, send us clear photos of the original filters, gasket and transmission information.

Related Transmission Maintenance Parts

KS supplies various automatic transmission maintenance and repair components.

Customers purchasing an 0CK service kit may also require:

• Transmission oil seals
• Oil pans
• Valve body components
• Solenoids
• Overhaul kits
• Transmission filters
• Clutch components

For customers performing more extensive gearbox rebuilding, our Overhaul Kit products provide additional sealing and repair components beyond normal maintenance service items.

Professional buyers can send multiple gearbox models or product photos together for checking and quotation.

Worldwide Transmission Service Kit Supply

KS supplies automatic transmission components to workshops, rebuilders, wholesalers and distributors worldwide.

If you are looking for an 0CK DL382 Transmission Service Kit, DL382 filter kit, S tronic maintenance components or other automatic transmission repair parts, send us your transmission model, product photos and required quantity.

We support professional transmission businesses with product identification, wholesale quotation and worldwide supply.

Contact KS for 0CK DL382 transmission service kit information and quotation.
