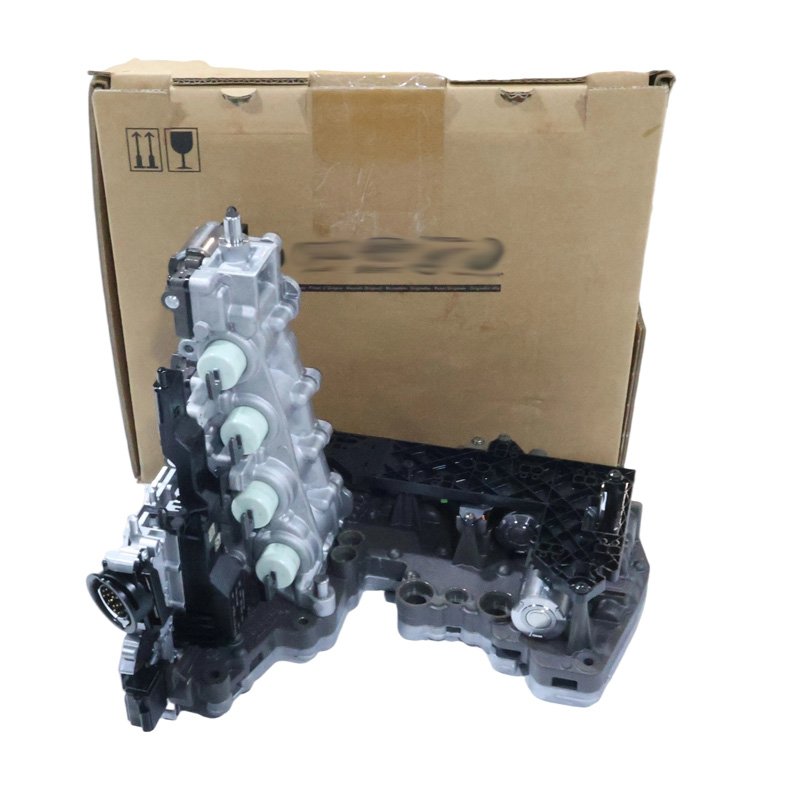

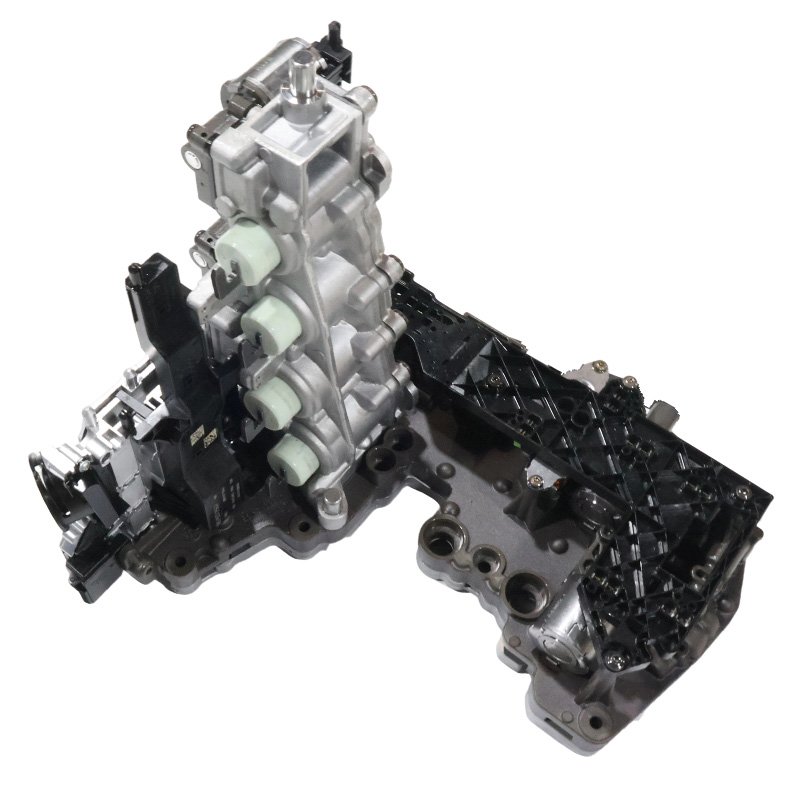

0B5 DL501 Original Mechatronic Unit for 7-Speed S tronic

0B5 DL501 Mechatronic Unit for S tronic Transmission

0B5 DL501 Mechatronic Unit is an integrated transmission control assembly designed for professional repair and replacement of the 0B5 DL501 7-speed S tronic dual-clutch transmission.

The 0B5 DL501 is a 7-speed transmission using a wet dual-clutch design. Its mechatronic system combines hydraulic transmission control with electronic management, sensors and actuators to coordinate clutch operation, hydraulic pressure and gear shifting. Specialist DL501 repair documentation describes the mechatronic unit as the central control system of the gearbox, combining hydraulic and electronic functions in one assembly.

This product is suitable for S tronic transmission specialists, automatic gearbox repair workshops, mechatronic rebuilders, automotive parts wholesalers and professional transmission parts distributors.

0B5 DL501 Mechatronic Unit Product Information

Basic product information:

Transmission: 0B5 / DL501
Transmission Type: 7-Speed Wet Dual-Clutch / S tronic
Product Type: Mechatronic Unit
Alternative Names: Mechatronic Assembly / Hydraulic Control Unit / Valve Body Assembly
Application: Transmission Hydraulic and Electronic Control Repair
Condition: Original according to supplied product information

Professional transmission catalogs separately list 0B5 DL501 mechatronic units, solenoids, TCUs and related hydraulic components. They also show complete or partial mechatronic assemblies depending on whether the electronic control section is included.

For this reason, customers should use the actual product photo and supplied configuration to confirm exactly what is included before ordering.

Function of the DL501 Mechatronic System

The mechatronic unit acts as the main hydraulic and electronic control center of the transmission.

Its functions include controlling and coordinating:

• Hydraulic system pressure
• Wet dual-clutch operation
• Clutch cooling
• Gear selection
• Gear shifting
• Communication with other vehicle control modules
• Transmission self-diagnosis
• Emergency operating functions

Professional DL501 repair documentation specifically lists hydraulic-pressure adaptation, dual-clutch adjustment, clutch cooling, gear selection and communication with other control modules among the mechatronic system’s functions.

Because the transmission relies on precise cooperation between the electronic controller, solenoids and hydraulic valve body, correct mechatronic operation is essential for stable gearbox performance.

Hydraulic Valve Body and Electronic Control

The 0B5 DL501 mechatronic assembly contains several different functional sections.

The hydraulic section contains internal channels and valves that distribute transmission oil according to control commands.

Solenoid valves convert electrical commands into hydraulic pressure changes.

The electronic section processes transmission information from sensors and communicates with the rest of the vehicle.

In professional transmission repair, the term “mechatronic” can refer to different supplied configurations. Some replacement units are sold as the hydraulic valve body without the electronic TCU, while others may include additional electronic components. Professional suppliers explicitly distinguish 0B5 mechatronic valve bodies supplied without the electronic control unit.

Customers should therefore confirm the exact assembly shown in the product photo before purchase.

Common DL501 Mechatronic Repair Areas

During transmission diagnosis, technicians may inspect the mechatronic unit when the gearbox develops abnormal shifting, clutch-control problems or hydraulic-pressure faults.

Typical areas inspected during professional repair include:

• Solenoid valves
• Internal wiring
• Hydraulic valve body
• Electronic control components
• Pressure regulation
• Sensors
• Transmission fluid contamination

DL501 specialist repair information notes that solenoid and internal wiring faults can occur in the mechatronic system and that contamination from transmission wear can affect hydraulic components.

However, abnormal transmission behavior should not automatically be diagnosed as a complete mechatronic failure.

Similar symptoms can also be caused by clutch wear, mechanical gearbox damage, transmission fluid problems or other electronic components.

Professional diagnosis is recommended before replacement.

0B5 DL501 Solenoid and Valve Body System

The DL501 mechatronic assembly uses multiple solenoid valves for different transmission-control functions.

Depending on their purpose, solenoids may regulate pressure, control clutch operation or manage gear-shift functions.

Specialist transmission suppliers maintain dedicated product categories for 0B5 DL501 mechatronic units, solenoids and electronic components, confirming that individual hydraulic parts can also be serviced separately from the complete assembly.

For some repairs, replacement of an individual solenoid or valve-body component may be appropriate.

For other repairs, replacing the complete mechatronic unit can provide a more practical solution.

The repair decision should depend on diagnostic results and the condition of the original transmission.

Professional Installation Recommended

Replacing a mechatronic assembly requires professional transmission repair experience.

During installation, technicians should confirm:

• Transmission model
• Original mechatronic version
• Hydraulic connections
• Electrical connectors
• Solenoid configuration
• Transmission oil condition
• Electronic control compatibility

After installation, diagnostic procedures, basic settings, adaptation or programming may be required depending on the supplied mechatronic configuration.

If the replacement unit does not include the electronic control module, the original compatible electronic section may need to be transferred or serviced separately.

Technicians should follow the appropriate transmission repair procedure for the specific vehicle and gearbox configuration.

For S tronic Transmission Repair Workshops

The 0B5 DL501 Mechatronic Unit is suitable for professional customers including:

• S tronic transmission repair shops
• Automatic gearbox rebuilders
• Mechatronic specialists
• Valve body repair workshops
• Automotive spare parts wholesalers
• Transmission parts distributors

Professional DL501 repair businesses may require several related products during the same transmission job.

These can include solenoid valves, TCU components, internal wiring, clutch components, filters, seals and transmission repair kits.

KS supplies electronic, hydraulic and mechanical transmission components for professional customers worldwide.

Check Compatibility Before Ordering

Before ordering the 0B5 DL501 Mechatronic Unit, please carefully compare the replacement assembly with the original unit.

We recommend confirming:

• Transmission code: 0B5 / DL501
• Original mechatronic number
• Valve body configuration
• Electronic control configuration
• Connector design
• Solenoid layout
• Product appearance
• Required quantity

If an OE number is visible on the original mechatronic unit, send the complete number together with the inquiry.

Because different revisions can exist, customers should not select the product only according to the general “0B5 DL501” transmission name.

Clear photos of the original unit can help with product identification.

Related 0B5 DL501 Transmission Parts

Customers repairing the DL501 transmission can also check our 0B5 DL501 Solenoid Valve products for individual mechatronic hydraulic repair.

For customers requiring other transmission hydraulic parts, our Valve Body product range contains components for different automatic and dual-clutch transmissions.

Related repair products can also include transmission control modules, seals, clutch components, filters and repair kits.

Combining multiple transmission products in one inquiry can make sourcing easier for professional workshops and distributors.

Worldwide DL501 Mechatronic Supply

KS supplies automatic transmission components to professional customers worldwide.

Our product range includes mechatronic units, valve bodies, TCUs, solenoids, pressure sensors, seals, clutch components, repair kits, filters and other gearbox parts.

If you are looking for an 0B5 DL501 Mechatronic Unit, DL501 valve body assembly or related S tronic transmission parts, send us your product photo, part number and required quantity.

We support transmission workshops, rebuilders, wholesalers and distributors with product identification, wholesale quotation and worldwide supply.

Contact KS for 0B5 DL501 mechatronic unit product information and quotation.
