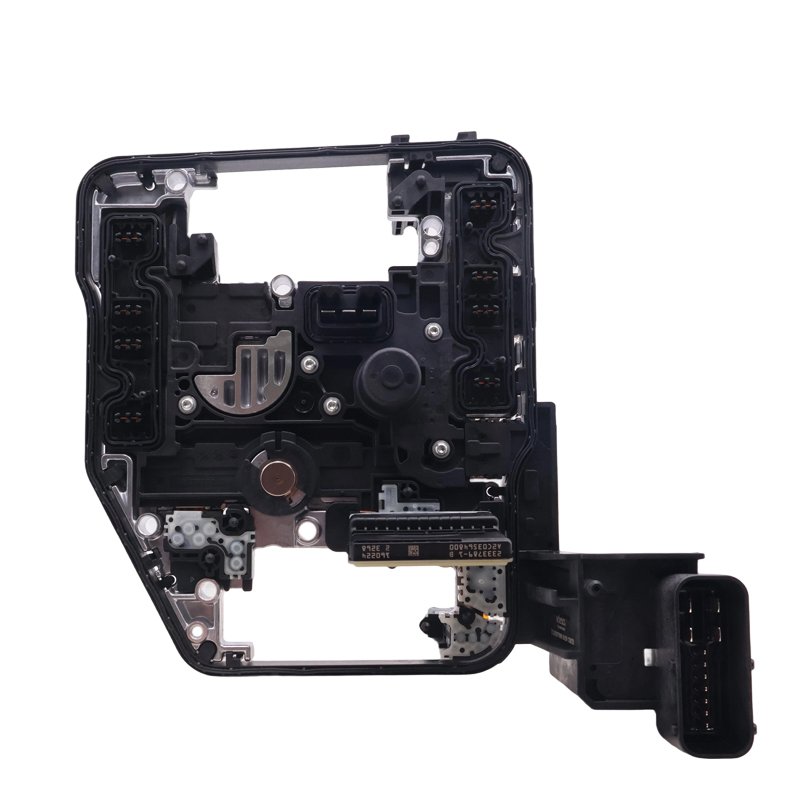

0AM927769N DQ200 TCU

The 0AM927769N DQ200 TCU is a LuK transmission control module designed for selected 7-speed DSG DQ200 transmission applications. The control unit is an important electronic component of the DQ200 mechatronic system, managing transmission operation, clutch control and gear-shifting functions according to the vehicle and transmission configuration.

The 0AM927769N reference is associated with the DQ200 generation 2 transmission control system. Diagnostic records for DQ200 vehicles show 0AM 927 769 N as the hardware control-unit reference under the automatic transmission control system. The unit is therefore a transmission control module rather than a complete hydraulic mechatronic assembly.

0AM927769N DQ200 TCU Application

The 0AM927769N DQ200 TCU is used with selected Volkswagen Group 7-speed dry-clutch DSG applications. DQ200 transmissions are commonly identified by the 0AM and later 0CW designations, with the exact electronic configuration depending on the vehicle, transmission version, software and production period.

The TCU communicates with the vehicle’s electronic systems and controls the mechatronic functions required for automatic gear selection and clutch operation. Because DQ200 control units can have different hardware and software versions, the part number alone should not be treated as proof of universal interchangeability with every 0AM or 0CW transmission.

Customers should confirm the original TCU number, vehicle information and transmission identification before ordering.

LuK DQ200 Transmission Control Module

This product is supplied as a LuK control module for the DQ200 transmission. The TCU is the electronic control portion of the transmission system and should not be confused with a complete mechatronic unit containing the hydraulic valve body, pump and other hydraulic components.

Specialist DQ200 parts listings identify 0AM927769N as one of the TCU references used for DQ200 applications, alongside other references such as 0AM927769D, E, F and G. These references represent different versions and should be matched carefully rather than automatically considered interchangeable.

DQ200 Transmission Control Functions

The transmission control module processes signals from the transmission and vehicle systems to manage shifting and clutch operation. It works together with the hydraulic mechatronic section to control the actuators and solenoids responsible for DQ200 transmission operation.

When a TCU develops an internal electronic fault, communication problem or other control issue, replacing the electronic control module may be part of the repair process. However, the replacement unit must have the appropriate hardware and software configuration for the vehicle.

A professional diagnostic scan should be performed before replacement whenever possible.

0AM DQ200 TCU Replacement

Replacing a DQ200 TCU is not always a simple mechanical replacement. Depending on the supplied configuration, programming, coding, cloning or basic settings may be required after installation.

The correct procedure depends on the original control-unit version, vehicle configuration and whether the replacement module is supplied programmed or unprogrammed. Some specialist suppliers offer DQ200 control units with programming options, while other units require cloning or adaptation using appropriate diagnostic equipment.

For this reason, customers should provide the original TCU reference and vehicle information when requesting a replacement.

DQ200 Mechatronic Repair

The DQ200 TCU operates as part of the complete mechatronic system. During a transmission repair, technicians should determine whether the problem is caused by the electronic control module, hydraulic system, solenoids, wiring, pressure system, clutch assembly or another component.

A replacement TCU should be checked for physical damage and correct connector condition before installation. After installation, the appropriate diagnostic procedure and basic settings should be completed according to the transmission and vehicle service requirements.

For workshops rebuilding DQ200 transmissions, the TCU can be supplied separately when the hydraulic mechatronic section remains serviceable.

Related DQ200 Transmission Parts

We also supply DQ200 transmission components including mechatronic units, valve bodies, pressure-control solenoids, accumulator components, clutch assemblies, clutch forks, TCU circuit boards and specialized transmission repair tools.

Combining the correct electronic control module with the required hydraulic and mechanical components can provide a more complete repair solution for professional transmission rebuilders and distributors.

0AM927769N DQ200 TCU Wholesale Supply

We supply DQ200 transmission control modules for professional repair workshops, transmission rebuilders, distributors and wholesalers worldwide. The 0AM927769N DQ200 TCU is suitable for selected DQ200 applications where this specific control-unit reference is required.

Please provide the original TCU part number, vehicle model, transmission code and available diagnostic information when requesting a quotation. This information helps confirm compatibility and determine whether programming, cloning or adaptation is required before installation.
