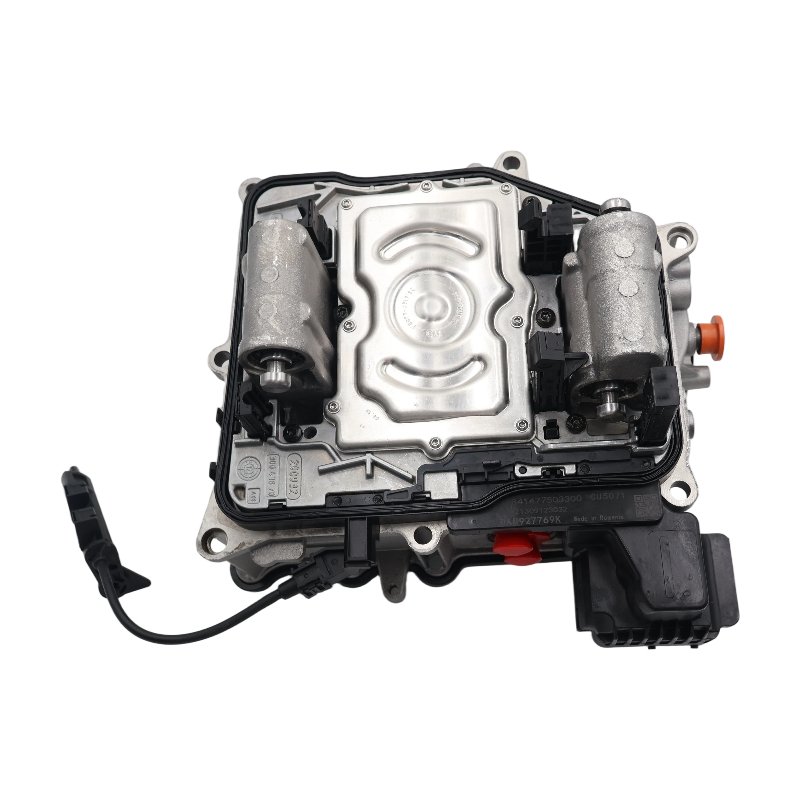

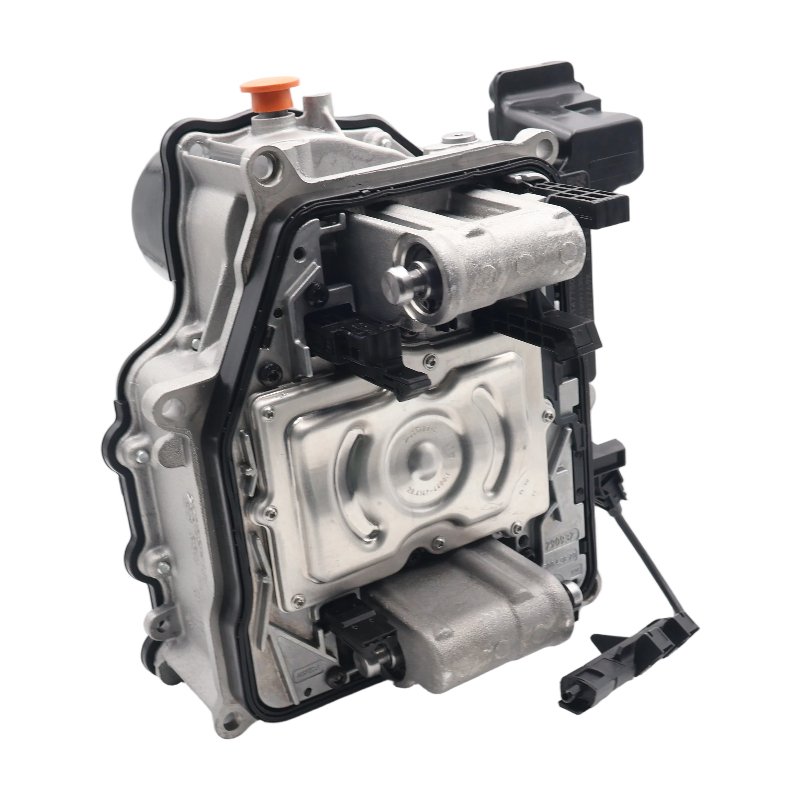

0AM927769K Mechatronic Unit for DQ200 DSG Transmission
0AM927769K Mechatronic Unit is a complete electronic and hydraulic control assembly used for professional repair and replacement of compatible 0AM DQ200 7-speed DSG dry dual-clutch transmissions.
An important identification point is that 0AM927769K / 0AM 927 769 K is primarily the transmission control module reference. A complete DQ200 mechatronic assembly combines this electronic TCU with a hydraulic control block, solenoid valves, pressure-generation components and related mechatronic hardware.
Professional transmission catalogs specifically list a DQ200 mechatronic configuration using hydraulic unit 0AM325025M together with TCM 0AM927769K, confirming the distinction between the TCU number and the complete mechatronic assembly.
This product is suitable for DSG transmission specialists, mechatronic repair workshops, automatic gearbox rebuilders, automotive spare-parts wholesalers and professional transmission-parts distributors.
0AM927769K Mechatronic Unit Product Information
Basic product information:
TCU Reference: 0AM927769K
Alternative Format: 0AM 927 769 K
Transmission: 0AM / DQ200
Transmission Type: 7-Speed DSG Dry Dual-Clutch
Product Type: Complete Mechatronic Unit
Main Systems: Electronic TCU + Hydraulic Control Assembly
Application: DSG Electronic and Hydraulic Control Repair
A professional replacement supplier separately describes 0AM927769K as the electronic control unit that mounts onto the existing hydraulic valve body, demonstrating that the K-number itself should not automatically be treated as the hydraulic block number.
For a complete mechatronic product, customers should therefore compare both the electronic module and hydraulic assembly before ordering.
Complete Mechatronic Unit vs 0AM927769K TCU
This distinction is especially important because you now have two separate products on your website.
The 0AM927769K TCU is the electronic control module.
The 0AM927769K Mechatronic Unit is the complete assembly when that TCU is combined with the corresponding hydraulic control components.
In simple terms:
0AM927769K TCU = Electronic Control Module
0AM927769K Mechatronic Unit = TCU + Hydraulic Control Assembly
Professional parts suppliers also sell complete DQ200 mechatronic assemblies under the 0AM927769K identification and describe them as including the TCU/ECU together with the hydraulic block and valve body.
This makes it possible to keep both products as separate WooCommerce pages without confusing customers.
Function of the DQ200 Mechatronic System
The mechatronic unit acts as the central control system of the DQ200 transmission.
The electronic section receives information from transmission sensors and vehicle control systems.
The hydraulic section then converts electronic commands into hydraulic actions.
The mechatronic system is involved in:
- Clutch engagement and release
- Gear selector operation
- Hydraulic pressure regulation
- Solenoid control
- Transmission input monitoring
- Electronic communication
- Fault detection
- Transmission protection functions
Because the DQ200 combines electronic and hydraulic functions in one mechatronic system, faults in different components can produce similar transmission symptoms.
Electronic TCU Section
The 0AM927769K electronic control section processes transmission operating information.
It works with internal sensors that monitor functions such as clutch travel, gear position and transmission input speed.
The TCU then sends commands to the solenoids and hydraulic control system.
The electronic section can contain:
- Main circuit board
- Processor
- Power-control electronics
- Sensor circuitry
- Communication circuits
- Solenoid-control electronics
Professional DQ200 repairs may involve replacing the complete TCU, repairing the circuit board or replacing individual internal sensors depending on the fault.
Hydraulic Valve Body Section
The hydraulic section of the mechatronic unit controls oil pressure and actuator movement.
Important components can include:
- Hydraulic valve body
- Solenoid valves
- Hydraulic oil pump
- Pump motor
- Pressure accumulator
- Hydraulic passages
- Internal seals
The hydraulic pump generates pressure, while the accumulator stores hydraulic pressure for clutch and gear-selector operation.
Solenoids then regulate pressure to the required transmission circuits.
The electronic TCU and hydraulic valve body therefore have to work together correctly.
0AM927769K and Hydraulic Block Versions
The complete mechatronic assembly can have hydraulic identification numbers separate from the TCU reference.
Professional DQ200 catalogs list 0AM325025M with TCM 0AM927769K as one complete mechatronic configuration. Other DQ200 generations can combine different 0AM325025 hydraulic units with different TCU suffixes.
This means customers should not select a complete mechatronic assembly based only on the visible 0AM927769K number.
They should also check:
- Hydraulic block version
- Valve body configuration
- TCU hardware
- Software configuration
- Sensor design
- Vehicle/transmission information
This is especially important for professional replacement work.
Possible Mechatronic Fault Symptoms
Problems within the DQ200 mechatronic system may be associated with symptoms such as:
- DSG warning messages
- Gear engagement problems
- Abnormal shifting
- Hydraulic pressure faults
- Limp mode
- Communication errors
- Clutch-control faults
- Failure to select gears
However, these symptoms do not automatically mean that the complete mechatronic unit needs replacement.
The cause may instead be an individual:
- TCU
- Sensor
- Circuit board
- Solenoid
- Oil pump
- Accumulator
- Hydraulic housing
- Internal seal
Professional diagnosis can help determine whether complete replacement or component-level repair is more appropriate.
Programming and Adaptation
A complete mechatronic replacement can require electronic setup after installation.
Professional repair suppliers specifically note that 0AM927769K replacement units may require programming, coding, basic settings or clutch adaptation depending on how the replacement unit is supplied.
Possible procedures include:
- Original TCU data transfer
- TCU cloning
- Programming
- Coding
- Basic settings
- Clutch adaptation
- Diagnostic testing
For this reason, the product should not be advertised as universally Plug & Play unless you know that a particular unit has already been correctly programmed for the customer’s vehicle.
Professional Installation Recommended
The 0AM927769K Mechatronic Unit should be installed by technicians familiar with DQ200 DSG transmissions.
Before installation, workshops should inspect:
- Original TCU number
- Hydraulic block identification
- Connectors
- Valve body configuration
- Sensor configuration
- Hydraulic pressure system
- Transmission fluid condition
- Software information
After installation, professional diagnostic equipment should be used to check communication, pressure control, gear engagement and clutch operation.
Basic settings or adaptation should be performed when required.
Check Compatibility Before Ordering
Before ordering the 0AM927769K Mechatronic Unit, customers should confirm more than just the K suffix.
We recommend checking:
TCU Number: 0AM927769K
Transmission: 0AM / DQ200
Hydraulic Block: Confirm original configuration
Mechatronic Appearance: Compare with product photos
Connector Design: Confirm
Software / Coding: Check before installation
Professional suppliers warn that DQ200 units with similar external appearance can differ in software, sensor configuration and hydraulic hardware.

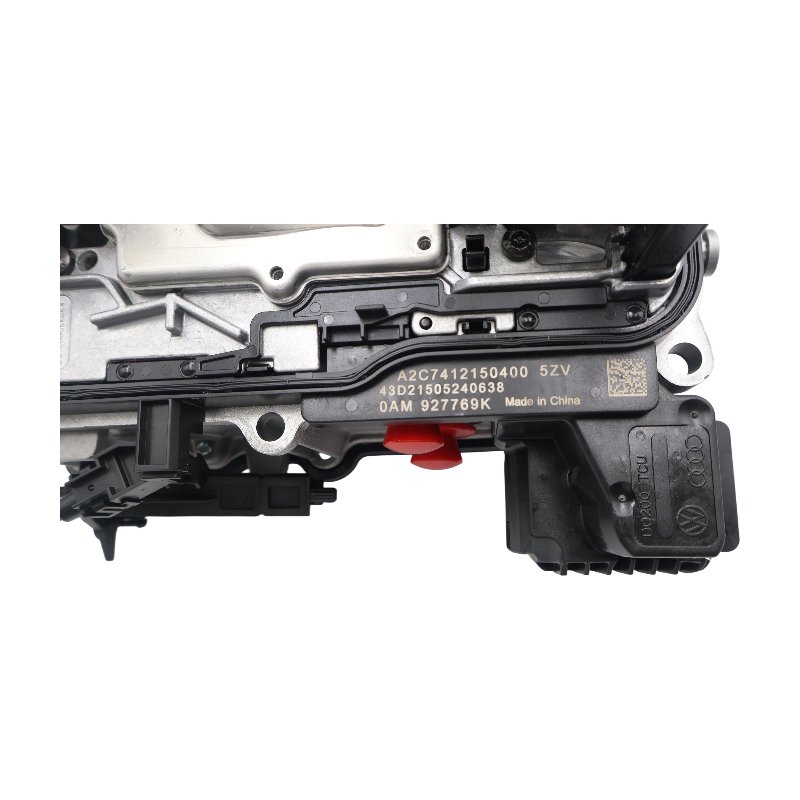

If the customer is unsure, ask them to provide clear photos of the original TCU label and complete mechatronic assembly.
Related 0AM DQ200 Transmission Parts
Customers who only need the electronic control module can check our 0AM927769K Transmission Control Module TCU.
For internal electronic repair, our 0AM DQ200 TCU Circuit Board and 0AM DQ200 TCU Sensor Kit are also available.
For hydraulic pressure repair, customers can check our 0AM325577F DQ200 Mechatronic Oil Pump and 0AM DQ200 Hydraulic Accumulator Kit.
These related products allow workshops to choose between complete mechatronic replacement and individual electronic or hydraulic component repair.
Worldwide DQ200 Mechatronic Supply
KS supplies automatic transmission electronic, hydraulic and mechanical components to professional customers worldwide.
Our product range includes complete mechatronic units, TCUs, circuit boards, sensors, solenoids, valve bodies, oil pumps, hydraulic accumulators, clutch parts and transmission repair kits.
If you are looking for an 0AM927769K Mechatronic Unit, complete DQ200 hydraulic control assembly or related DSG repair components, send us your original part information, product photo and required quantity.
We support transmission workshops, rebuilders, wholesalers and distributors with product identification, wholesale quotation and worldwide supply.
Contact KS for 0AM927769K mechatronic unit product information and quotation.
