0AM DQ200 Transmission Control Module 927770J 927770Q
0AM DQ200 Transmission Control Module is an electronic control component used in professional repair and replacement of the 0AM DQ200 7-speed DSG dry dual-clutch transmission system.
This product is supplied for applications associated with the 927770J and 927770Q transmission control module references. The TCU, also commonly called a transmission computer, TCM or gearbox control unit, forms the electronic control section of the DQ200 mechatronic system.
The module receives information from transmission sensors and vehicle communication systems, processes operating data and sends commands to the hydraulic mechatronic components responsible for clutch and gear-selection control.
This product is suitable for professional DSG transmission workshops, TCU repair specialists, automatic gearbox rebuilders, mechatronic repair businesses, automotive parts wholesalers and transmission parts distributors.
0AM DQ200 Transmission Control Module Product Information
Basic product information:
Transmission: 0AM / DQ200
Transmission Type: 7-Speed DSG Dry Dual-Clutch Transmission
Product Type: Transmission Control Module / TCU / TCM
References: 927770J / 927770Q
Application: DSG Electronic Control Repair
Installation Area: DQ200 Mechatronic Electronic System
The complete original module number should always be checked before ordering.
Although 927770J and 927770Q belong to the same general DQ200 electronic-control product group, electronic transmission modules can differ in hardware, software, coding and vehicle-specific configuration.
Customers should therefore compare the original module label before replacement.
Function of the DQ200 Transmission Control Module
The transmission control module acts as the electronic control center of the DQ200 DSG system.
It receives data from transmission and vehicle sensors and uses this information to determine how the transmission should operate.
The TCU is involved in functions such as:
- Gear-selection control
- Clutch engagement control
- Sensor signal processing
- Solenoid control
- Hydraulic command management
- Transmission protection
- Diagnostic monitoring
- Communication with vehicle control systems
The transmission control module does not directly move the clutch or gears mechanically.
Instead, it sends electronic commands to the hydraulic mechatronic system, which then performs the required physical transmission operations.
TCU and DQ200 Mechatronic System
The DQ200 mechatronic unit combines electronic control and hydraulic control in one transmission system.
The electronic side contains components such as:
- Transmission control module
- Main circuit board
- Internal sensors
- Communication circuits
The hydraulic side includes:
- Valve body
- Solenoid valves
- Hydraulic oil pump
- Pressure accumulator
- Hydraulic passages
- Clutch and gear actuators
The 0AM DQ200 Transmission Control Module controls the electronic side of this system.
When a gear change is required, the TCU processes sensor information and sends commands to the solenoid and hydraulic system.
The hydraulic components then create the required pressure and actuator movement.
This close relationship is why electronic and hydraulic problems can sometimes produce similar transmission symptoms.
927770J and 927770Q References
This product page covers the 927770J and 927770Q TCU references.
When ordering a replacement electronic control module, professional buyers should pay attention to the complete original identification.
A control module may look similar externally while containing different:
- Hardware revisions
- Software versions
- Coding data
- Internal electronic configuration
- Vehicle-specific information
For this reason, customers should not select a module only according to the general “DQ200” transmission name.

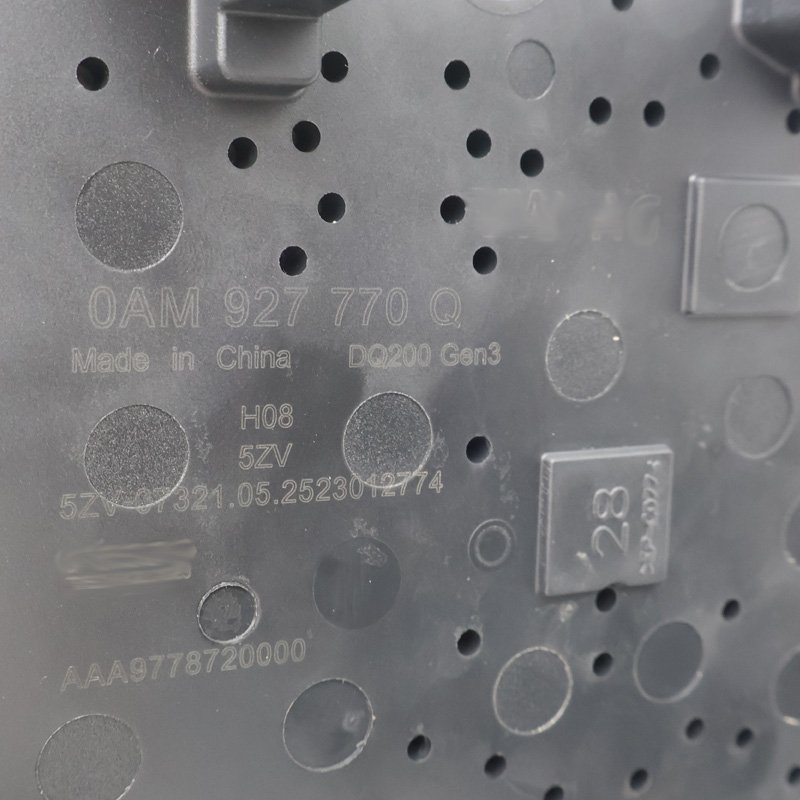

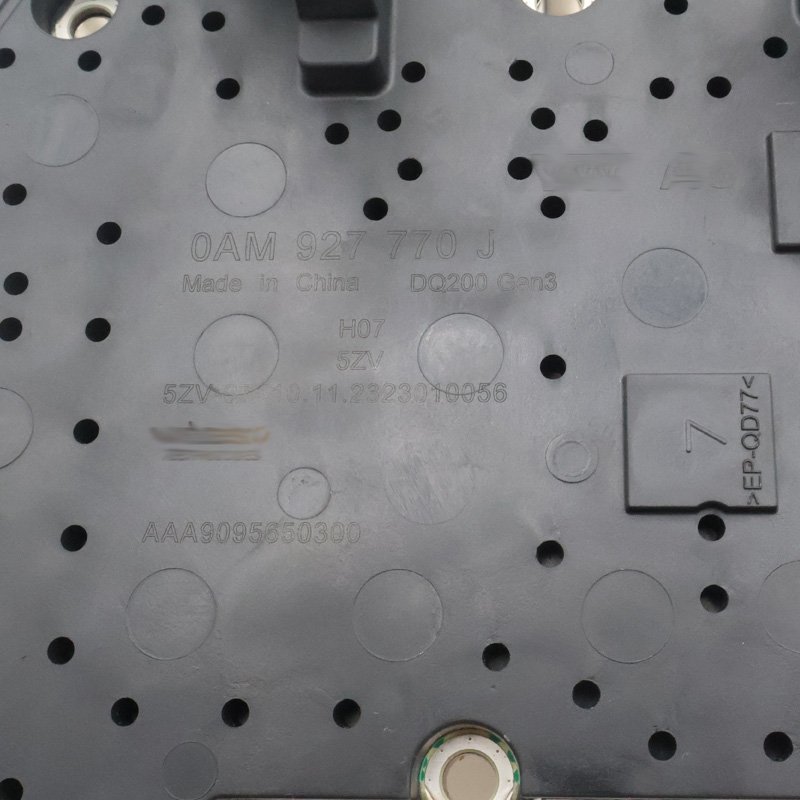

The original TCU label should be checked whenever possible.
If the original module carries another suffix or reference, customers can provide a clear photo for product confirmation.
Common TCU Related Fault Symptoms
A damaged or malfunctioning transmission control module may be associated with symptoms such as:
- DSG warning messages
- Transmission communication faults
- Gear-selection problems
- Clutch-control errors
- Limp mode
- Abnormal shifting
- Failure to engage a gear
- Electronic transmission fault codes
However, these symptoms do not automatically mean that the complete TCU needs replacement.
Similar problems can also originate from:
- Internal sensors
- Circuit-board damage
- Electrical connectors
- Wiring problems
- Solenoid valves
- Hydraulic pressure faults
- Valve body damage
- Oil pump or accumulator problems
Professional diagnosis should therefore be completed before replacing the control module.
TCU Programming and Data Transfer
Unlike a simple mechanical transmission component, a replacement TCU may require electronic setup after installation.
Depending on the condition of the replacement unit and the original module, professional technicians may need to perform:
- TCU cloning
- Original data transfer
- Programming
- Coding
- Basic settings
- Transmission adaptation
- Diagnostic testing
The original control module may contain vehicle-specific and transmission-specific electronic information.
For this reason, professional DSG electronic equipment is recommended when replacing or rebuilding a DQ200 control module.
Customers should not assume that every transmission computer is automatically plug-and-play.
Difference Between TCU and Complete Mechatronic Unit
The transmission control module and complete mechatronic assembly are related but different products.
A TCU is mainly the electronic control component.
A complete mechatronic unit combines electronic control with the hydraulic valve body and related control components.
In simple terms:
TCU = Electronic Control
Mechatronic Unit = Electronic Control + Hydraulic Control Assembly
This distinction is important for professional repair.
If the hydraulic valve body and mechanical mechatronic components are still in good condition, replacing or repairing only the electronic TCU may be appropriate.
If both electronic and hydraulic sections are damaged, a complete mechatronic replacement may be required.
TCU Circuit Board and Sensor Repair
Professional DQ200 electronic repair does not always require replacement of the complete control module.
Depending on the diagnosed fault, technicians may also repair individual internal components.
Possible electronic repair products include:
- TCU main circuit board
- Internal transmission sensors
- Flex circuits
- Electronic connections
- Complete replacement TCU
This allows professional repair workshops to select the appropriate repair level according to the condition of the original module.
If the original TCU housing and other components remain usable, component-level electronic repair may be a practical option.
Professional Installation Recommended
The 0AM DQ200 Transmission Control Module should be installed by technicians familiar with DSG electronic systems.
Before installation, technicians should inspect:
- Original TCU number
- Connector condition
- Hardware configuration
- Software information
- Transmission model
- Mechatronic condition
The electronic control unit should be handled carefully and protected from contamination, moisture and electrostatic damage.
After installation, professional diagnostic testing should be performed.
Programming, coding, basic settings or adaptation may be required depending on the replacement unit.
Check Compatibility Before Ordering
Before purchasing the 0AM DQ200 Transmission Control Module, customers should confirm the original electronic control unit information.
Important points include:
Transmission: 0AM / DQ200
Reference: 927770J / 927770Q
Product Type: TCU / Transmission Control Module
Original Label: Compare carefully
Hardware Version: Confirm when available
Software Configuration: Check before installation
Customers should provide the complete original part number and clear module photos if compatibility is uncertain.
Correct identification is particularly important for electronic transmission components.
Related 0AM DQ200 Transmission Parts
For complete electronic and hydraulic control replacement, customers can also check our 0AM927769K Mechatronic Unit.
For hydraulic control repair, our 0AM325066AP Valve Body is also available.
For internal electronic rebuilding, customers can check our 0AM DQ200 TCU Circuit Board and 0AM DQ200 TCU Sensor Kit.
For hydraulic pressure repair, our 0AM325577F DQ200 Mechatronic Oil Pump is another related product.
These components cover different electronic and hydraulic repair levels of the DQ200 transmission system.
Worldwide DQ200 TCU Supply
KS supplies DSG and automatic transmission electronic, hydraulic and mechanical components to professional customers worldwide.
Our product range includes transmission control modules, TCU circuit boards, sensors, complete mechatronic units, valve bodies, solenoids, hydraulic oil pumps, accumulators, clutch components and repair kits.
If you are looking for an 0AM DQ200 Transmission Control Module with 927770J or 927770Q reference, send us your original module information, product photo and required quantity.
We support transmission workshops, rebuilders, wholesalers and distributors with product identification, wholesale quotation and worldwide supply.
Contact KS for 0AM DQ200 transmission control module product information and quotation.
