0AM DQ200 Bosch Solenoid Set F01R00WA02

The 0AM DQ200 Bosch Solenoid Set with reference F01R00WA02 is intended for second-generation DQ200 7-speed dry dual-clutch mechatronic repair. Specialist transmission catalogs identify F01R00WA02 as a Bosch pressure-regulator solenoid with a white electrical connector for the N436 and N440 positions used in 0AM/DQ200 applications. These two positions regulate hydraulic pressure for the two transmission sections, making correct solenoid operation important for clutch and gear-control performance.

This product is suitable for professional DSG workshops, mechatronic rebuilders, transmission specialists, distributors and wholesalers. F01R00WA02 is a Bosch manufacturer reference for the individual solenoid. If several valves are supplied together as one package, the quantity should be confirmed from the product photos and packing list rather than assumed from the reference number alone.

0AM DQ200 Bosch Solenoid Set Function

The 0AM DQ200 Bosch Solenoid Set is used in the electro-hydraulic control system of the DQ200 mechatronic unit. The mechatronic assembly combines an electronic controller with a hydraulic valve body, pump and multiple solenoids. Electrical commands from the transmission control system are converted into hydraulic pressure changes that operate the clutch and gear-selection circuits.

For Gen 2 DQ200 applications, specialist catalogs identify F01R00WA02 with the N436 and N440 pressure-regulation positions. These solenoids are often described as EPC or pressure-control valves. Consistent response is important because pressure that is too low, unstable or incorrectly regulated can affect clutch engagement and transmission operation.

A faulty pressure solenoid may be associated with pressure-related diagnostic codes, poor engagement, irregular shifting or mechatronic operating problems. These symptoms do not automatically prove that the solenoid is defective. Pump wear, accumulator problems, valve-body leakage, wiring faults, contamination or TCU issues can create similar symptoms.

F01R00WA02 Bosch Reference

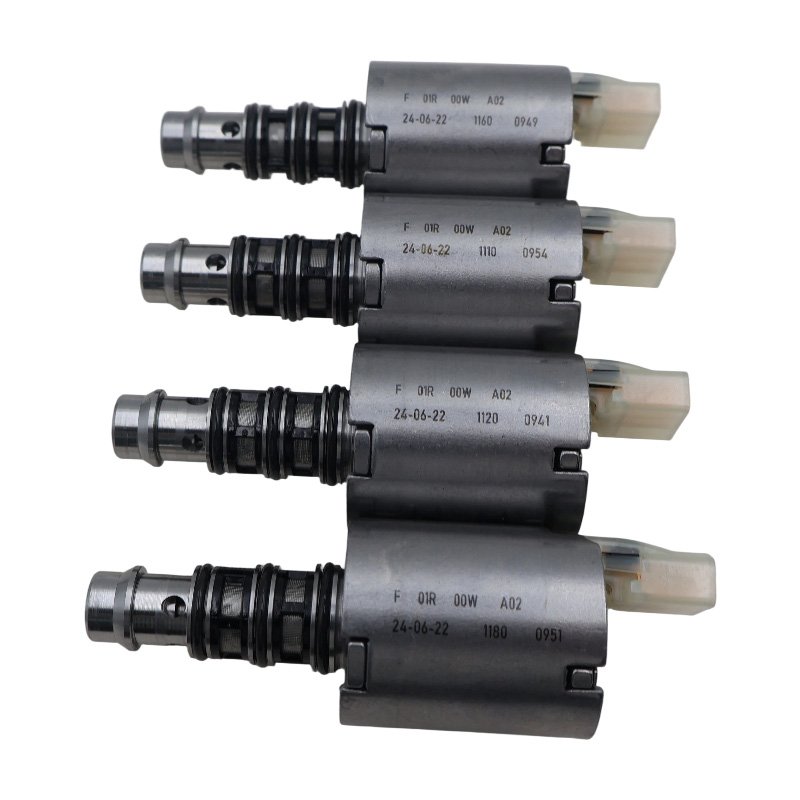

The correct Bosch-style reference is F01R00WA02. The leading letter F is part of the full number, so the product page should use F01R00WA02 rather than only 01R00WA02.

Transmission parts catalogs list F01R00WA02 for DQ200 0AM Gen 2 applications and describe it as a pressure-regulator solenoid with a white connector. The usual positions are N436 and N440. Some catalogs also list related DQ200 solenoid references such as F01R00WA03 for other valve positions, so the two numbers should not be treated as the same component.

For accurate matching, customers can provide the original solenoid photo, connector color, mechatronic generation, transmission code and original markings.

N436 and N440 Pressure Regulation

The DQ200 hydraulic unit uses multiple solenoids with different jobs. N436 and N440 are pressure-regulation positions associated with the two transmission halves. Although the two valves can use the same F01R00WA02 reference in supported Gen 2 configurations, the complete mechatronic contains additional shift-control solenoids that perform different functions.

This distinction is important when a workshop orders a full solenoid set. A package containing only F01R00WA02 valves is not automatically the same as a complete eight-solenoid DQ200 mechatronic set. Customers requiring all valve positions should confirm the exact kit composition before ordering.

Gen 2 DQ200 Identification

Specialist catalogs commonly associate F01R00WA02 with second-generation DQ200 mechatronic units and a white connector design. Physical comparison is recommended because DQ200 0AM and later 0CW systems have multiple revisions.

Before installation, technicians should compare the connector, valve body shape, hydraulic end and original markings. A correct transmission code alone may not be enough when a mechatronic has previously been rebuilt or exchanged.

Professional Mechatronic Repair

Before fitting a replacement 0AM DQ200 Bosch Solenoid Set, the valve body should be inspected for contamination, bore wear and hydraulic leakage. The pump, accumulator, wiring and pressure circuit should also be checked when the original fault involves unstable pressure.

Clean installation conditions are important because debris can affect small hydraulic passages and solenoid movement. After repair, appropriate diagnostic checks, basic settings or clutch adaptation may be required according to the repair procedure and vehicle configuration.

Related DQ200 Mechatronic Parts

We supply DQ200 valve bodies, pressure accumulators, hydraulic pumps, transmission control units, complete mechatronic units, wiring and repair components, clutch parts and other DSG transmission products.

Workshops can combine solenoids with related DQ200 repair parts in one order and send original product photos for matching support.

0AM DQ200 Bosch Solenoid Set Wholesale Supply

We supply 0AM DQ200 Bosch Solenoid Set products to professional transmission workshops, rebuilders, distributors and wholesalers worldwide. Contact us with the required quantity, original solenoid photos and mechatronic information for configuration confirmation, current availability and wholesale quotation.
